Forklift · Hyster

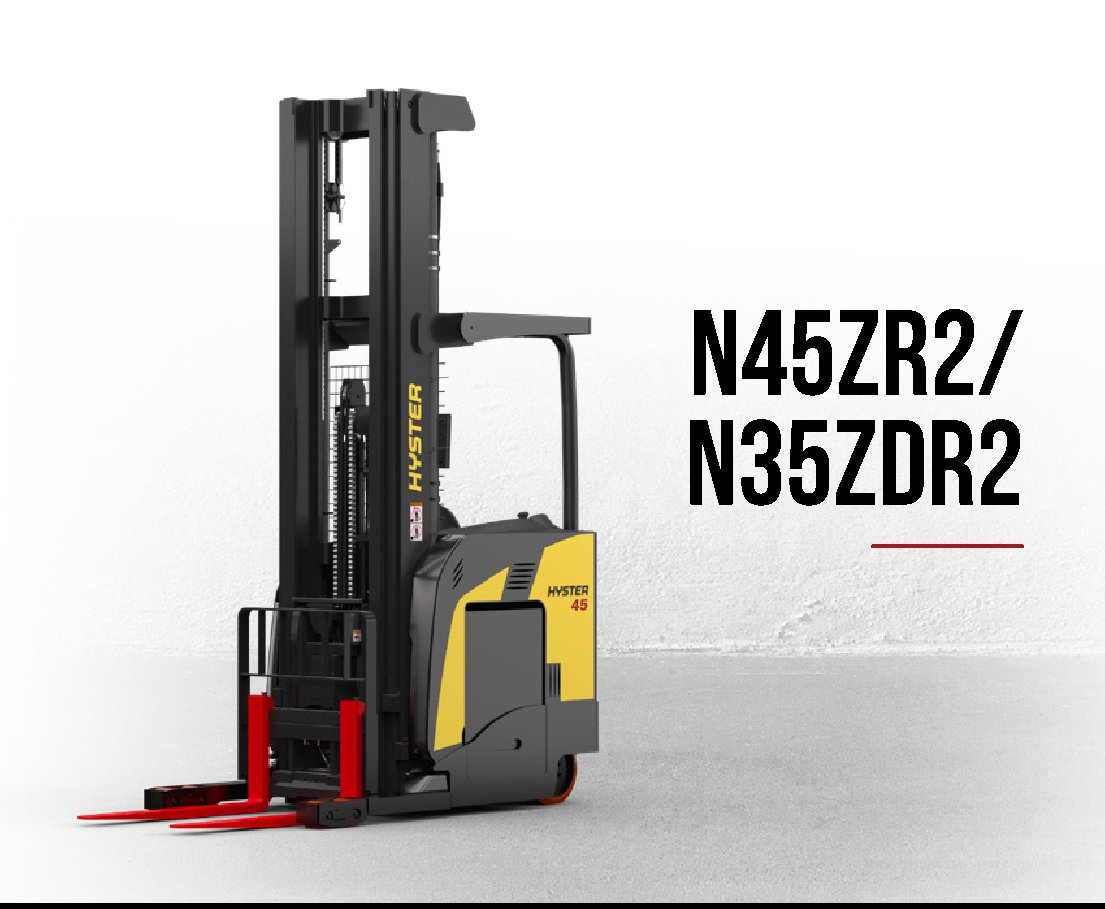

Hyster N35ZDR2 Specs
Quick-reference specifications for the Hyster N35ZDR2 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 3500 lb1588 kg
Performance 7 specs
| Rated capacity | 3500 lb (1588 kg) |
|---|---|
| Load center, distance | 24 in (610 mm) |
| Mast tilt angle, forward/back | 3° / 4° |
| Stability – comply with ANSI | Yes |
| Forward (forks first) – empty/RL | 7.4/6.5 mph |
| Lowering speeds, empty | 105 ft/min |
| Lowering speeds, RL | 105 ft/min |
Dimensions 5 specs
| Tire type, load/caster/drive | Poly / Poly / NDIITHANE® |
|---|---|
| Forks, standard (length x width x thickness) | 1.60 x 3.9 x 42 in |
| Size – front load wheels, standard | 5 x 2.9 |
| Size, standard – drive tire/dual casters | 13.5 x 5.5 7.9 x 2.2 |
| Brakes, service/parking (method of control) | Foot |
Weight 1 spec
| Axle loading with assembly retracted (front / rear) | 6700 / 4250 lb |
|---|
Power / Engine 5 specs
| Power type, electric, diesel, LPG | Electric – 36 volt |
|---|---|
| Battery compartment size, 18.5″ – (LxWxH) | 39.0 x 18.5 x 31.5 in |
| Battery type | Lead Acid |
| Traction motor control method | Transistor |
| Hoist motor control method | Transistor |
