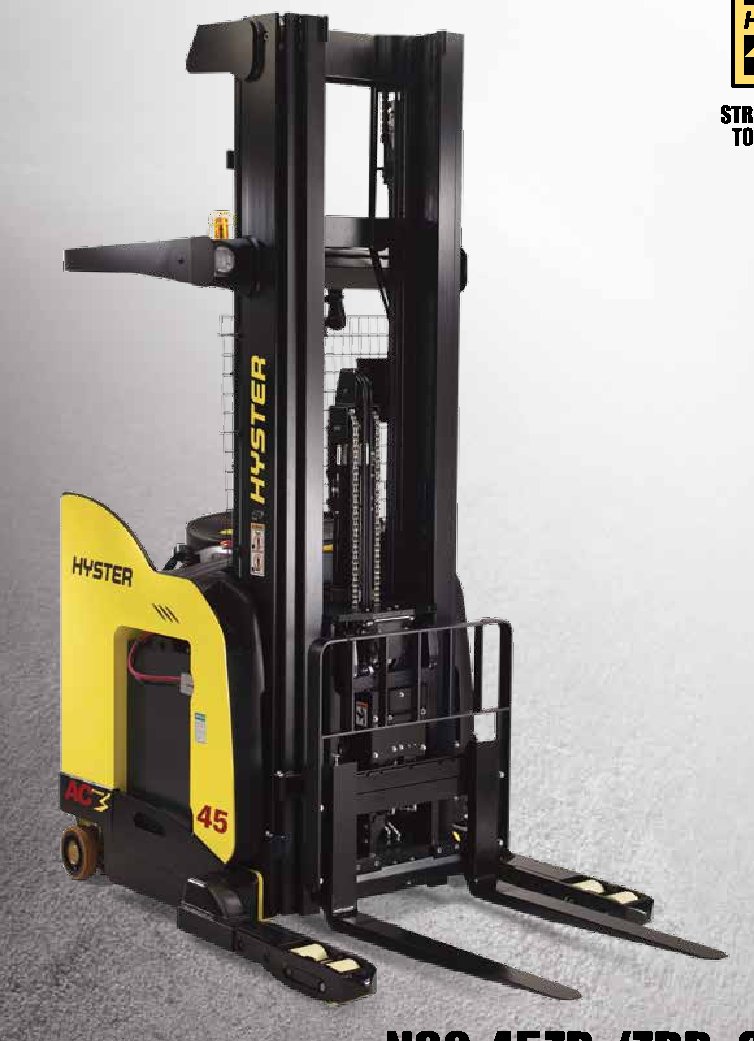

Hyster N40ZR2 Specs
Quick-reference specifications for the Hyster N40ZR2 forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 4000 lb1814 kg
Performance 9 specs
| Rated Capacity | 4000 lb (1814 kg) |
|---|---|
| Load Center, Distance | 24 in (610 mm) |
| Mast Tilt Angle, Forward/Back | 3 / 4 degrees° |
| Stability – Comply with ANSI | Yes |
| Travel Speed – Forward (forks first) – Empty/RL – Standard | 7.4/6.0 mph |
| Lift Speed – Empty – Optional | 114 ft/min |
| Lowering Speeds, Empty | 95 ft/min |
| Lowering Speeds, RL | 95 ft/min |
| Brakes, Method of Control – Service/Parking | Foot |
Dimensions 4 specs
| Tire Type – Load/Caster/Drive | Poly / Poly / Poly |
|---|---|
| Forks, Standard (Length x Width x Thickness) | 1.8 x 3.9 x 42 in |
| Size – Front Load Wheels, Standard | 5 x 3.9 |
| Size, Standard – Drive Tire/Dual Casters | 12.0 x 5.5 Drive / 7.9 x 2.2 Caster |
Power / Engine 11 specs
| Power Type – Electric, Diesel, LPG | Electric – 36 volt |
|---|---|
| Truck Weight, without Battery (approximate) | 5000 lb |
| Turning Radius – minimum outside, 16.5″ Battery Compartment | 67.90 in |
| Turning Radius – minimum outside, 18.5″ Battery Compartment | 69.90 in |
| Turning Radius – minimum outside, 21.5″ Battery Compartment | 72.90 in |
| Wheelbase – 16.5″ Battery Compartment | 57.36 in |
| Wheelbase – 18.5″ Battery Compartment | 59.37 in |
| Wheelbase – 21.5″ Battery Compartment | 62.36 in |
| Battery Type | Lead Acid |
| Traction Motor Control Method | Transistor |
| Hoist Motor Control Method | Transistor |
