Forklift · Hyster

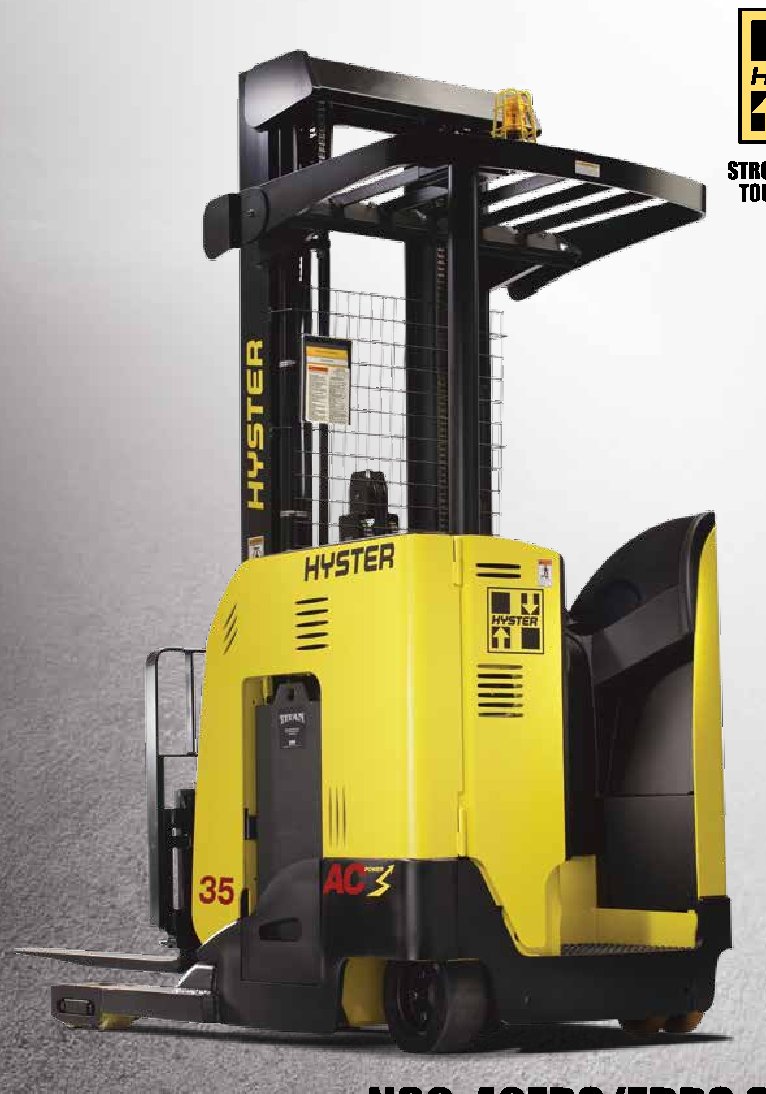

Hyster N40ZRS2 Specs
Quick-reference specifications for the Hyster N40ZRS2 forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 4000 lb1814 kg
Performance 11 specs
| Rated Capacity | 4000 lb (1814 kg) |
|---|---|
| Load Center, Distance | 24 in (610 mm) |
| Mast Tilt Angle, Forward/Back | 3 / 4 degrees° |
| Stability – Comply with ANSI | Yes |
| Lift Speeds, Empty | 60 ft/min |
| Lowering Speeds, Empty | 85 ft/min |
| Lowering Speeds, RL | 85 ft/min |
| Size – Front Load Wheels, Standard | 5 x 3.9 |
| Brakes, Method of Control – Service/Parking | Foot |
| Traction Motor Control Method | Transistor |
| Hoist Motor Control Method | Transistor |
Dimensions 4 specs
| Tire Type – Load/Caster/Drive | Poly / Poly / Rubber |
|---|---|
| Forks, Standard (Length x Width x Thickness) | 1.8 x 3.9 x 42 in |
| Size, Standard – Drive Tire/Dual Casters – Drive | 12.0 x 5.5 |
| Size, Standard – Drive Tire/Dual Casters – Caster | 7.9 x 2.2 |
Power / Engine 8 specs
| Truck Weight, without Battery (approximate) | 5000 lb |
|---|---|
| Turning Radius – minimum outside, 12.5″ Battery Compartment | 65.74 in |
| Turning Radius – minimum outside, 14.5″ Battery Compartment | 65.74 in |
| Turning Radius – minimum outside, 16.5″ Battery Compartment | 67.74 in |
| Wheelbase – 12.5″ Battery Compartment | 55.35 in |
| Wheelbase – 14.5″ Battery Compartment | 55.35 in |
| Wheelbase – 16.5″ Battery Compartment | 57.36 in |
| Battery Type | Lead Acid |
