Forklift · Hyster

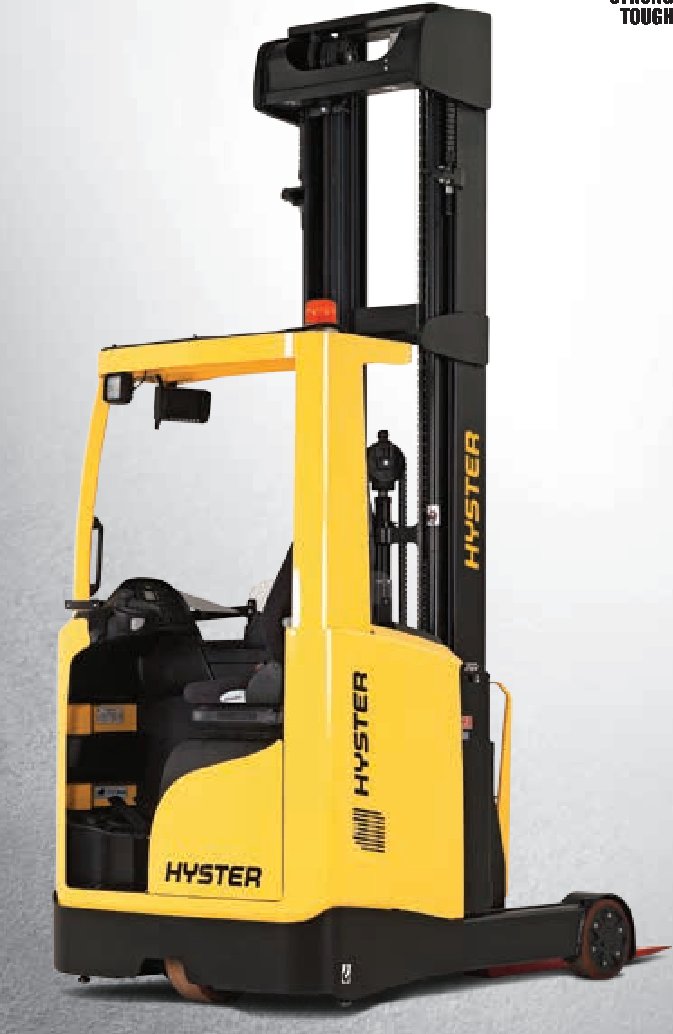

Hyster R2.5 Specs
Quick-reference specifications for the Hyster R2.5 forklift, from the manufacturer’s spec sheet and published specifications.
Performance 11 specs
| Fork carriage ISO 2328, class/type A, B | 2A |
|---|---|
| Load Capacity | 5,500 lb (2,500 kg) |
| Travel Speed | 8.1 mph (13 km/h) |
| Lifting Speed | 0.24-0.25 m/s |
| Lowering Speed | 0.51 m/s |
| Turning Radius | 6.21 ft (1.893 m) |
| Load Center | 24 in (600 mm) |
| Mast Tilt Forward | 2° |
| Mast Tilt Backward | 4° |
| Max Lift Height (Standard) | 37.5 ft (11.426 m) |
| Free Lift | 62 in (1.582 m) |
Dimensions 7 specs
| Overall Length | 100 in (2,600 mm) |
|---|---|
| Overall Width | 53 in (1,270 mm) |
| Length to Fork Face | 55 in |
| Mast Lowered Height | 87 in (2,195 mm) |
| Mast Extended Height | 208 in (5,263 mm) |
| Drive-in Width | 36.6 in (930 mm) |
| Height of Overhead Guard | 2,175 mm |
Weight 2 specs
| Service Weight | 8,646 lb (3.92 t) |
|---|---|
| Battery Weight | 3,065 lb (1.39 t) |
Power / Engine 3 specs
| Battery according to DIN | 43531/35/36 A,B,C, no |
|---|---|
| Battery Voltage | 48 V |
| Hoist Motor | 14 kW |
Hydraulics / Fluids 2 specs
| Operating Pressure for Attachments | 180 bar |
|---|---|
| Oil Flow for Attachment | 20 l/min |
