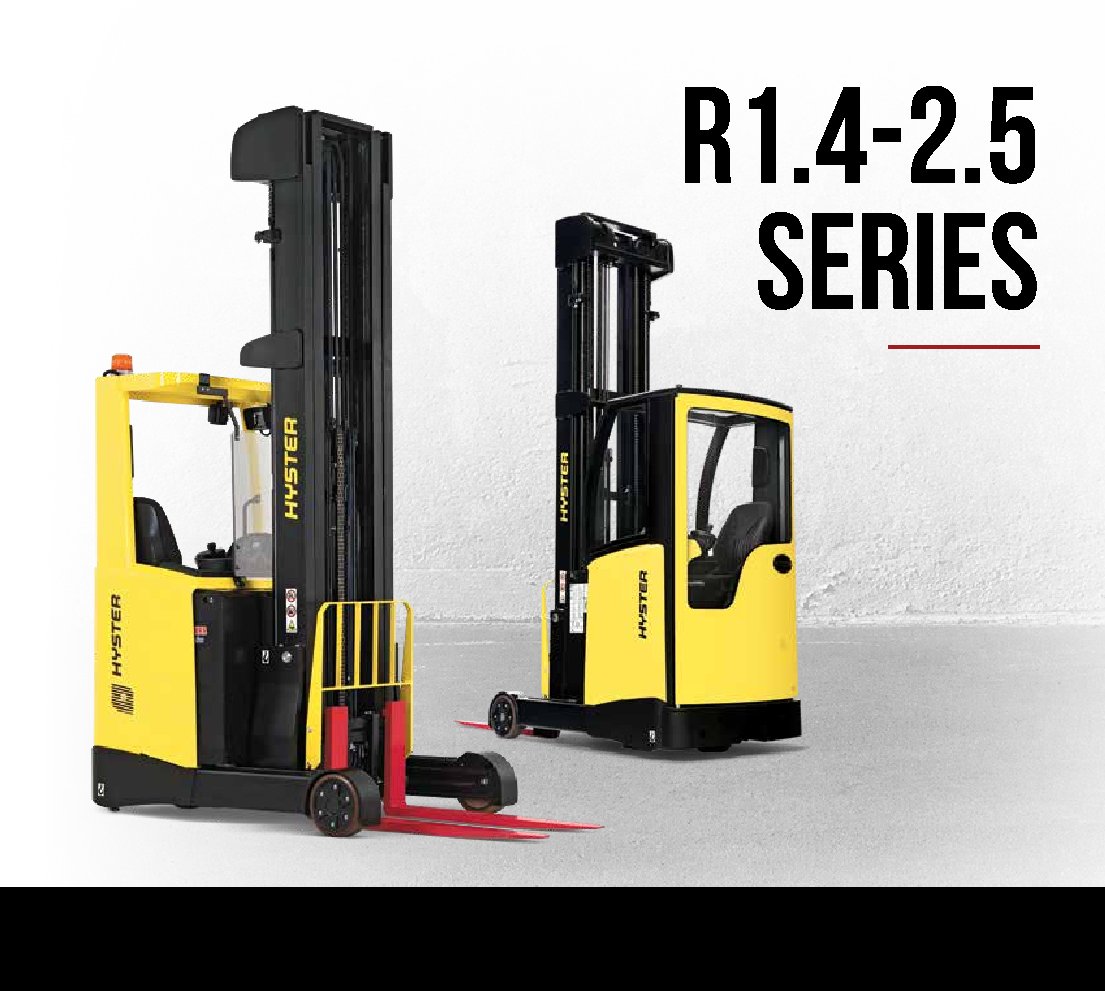

- Hyster R1.6
Forklift · Hyster
Hyster R1.6 Specs
Quick-reference specifications for the Hyster R1.6 forklift, from the manufacturer’s spec sheet and published specifications.
- Gradeability (Full Load)
- 15%
Performance 5 specs
| Load Capacity | 3,500 lb (1,600 kg) |
|---|---|
| Max Travel Speed | 8.7 mph optional (14 km/h) |
| Max Lifting Speed | 0.8 m/s |
| Gradeability (Full Load) | 15% |
| Turning Radius (Outside) | 68 in (1.736 m) |
Dimensions 6 specs
| Aisle width for pallets | 39.3 inx47.2 in (1000 mm x 1200 mm) across – (L6 x b12) |
|---|---|
| Overall Length | 94 in (2,523 mm) |
| Overall Width | 50 in (1,265 mm) |
| Height (Mast Lowered) | 86-87 in (2,195 mm) |
| Load Center | 24 in (600 mm) |
| Wheelbase | 57 in (1.436 m) |
Weight 2 specs
| Axle loading, NL front/rear | 4 |
|---|---|
| Total Weight (with battery) | 7,820 lb (3,546 kg) |
Power / Engine 4 specs
| Battery weight | 8 |
|---|---|
| Battery Voltage | 48 V |
| Traction Motor | 5.4 kW |
| Hoist Motor | 9.9-14 kW |
