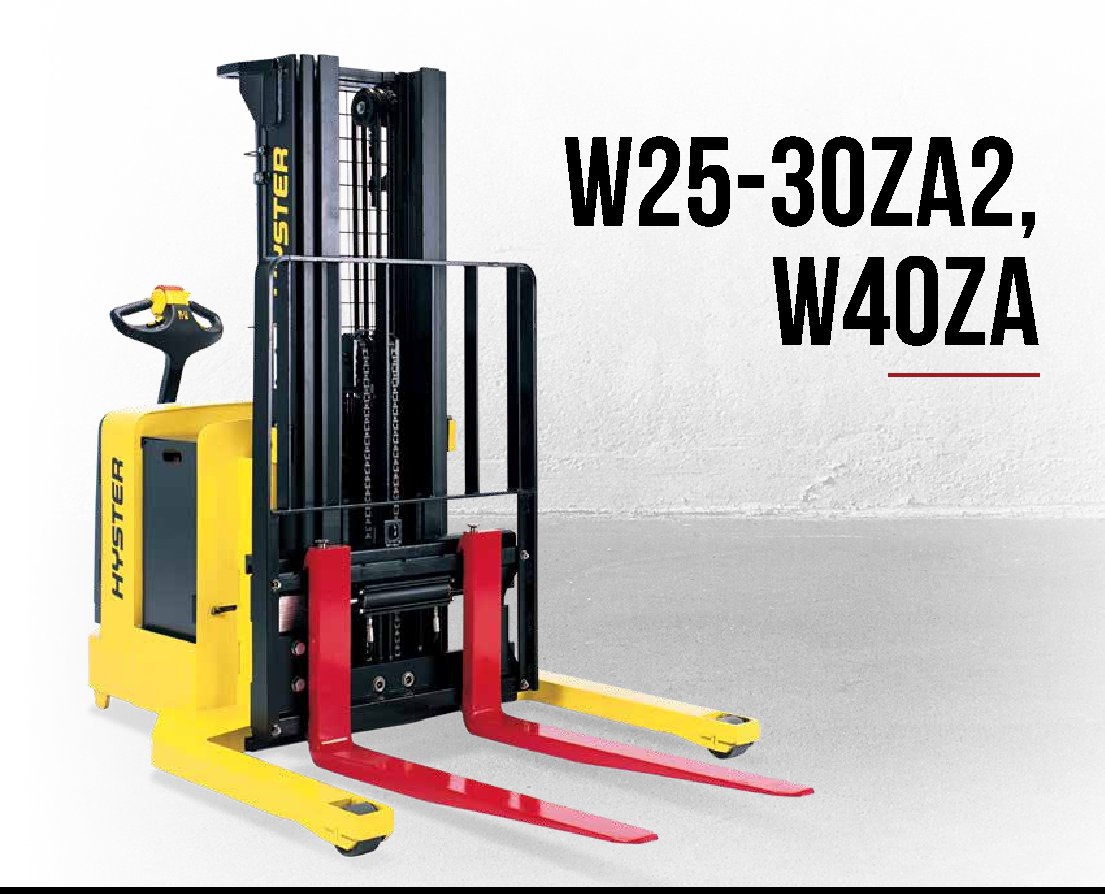

Hyster W25ZA2 Specs
Quick-reference specifications for the Hyster W25ZA2 forklift, taken from the manufacturer’s spec sheet.
- Capacity, rated
- 2,500 lb1,134 kg
- Gradeability
- 10.0 %
Performance 9 specs
| Capacity, rated | 2,500 lb (1,134 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Travel speed, no load | 3.5 mph (5.6 km/h) |
| Travel speed, rated load | 3.0 mph (4.8 km/h) |
| Lift speed, std. no load | 30.0 ft/min (0.15 m/s) |
| Lift speed, std. rated load | 22.0 ft/min (0.11 m/s) |
| Lowering speed, std. no load | 60.0 ft/min (0.3 m/s) |
| Lowering speed, std. rated load | 70.0 ft/min (0.36 m/s) |
| Gradeability | 10.0 % |
Dimensions 12 specs
| Tire type, cushion, solid, pneumatic, etc. | Cushion |
|---|---|
| Standard free lift (TOF) | 6.0 in (152 mm) |
| Maximum carriage width | 33.7 in (857 mm) |
| Forks, width/thickness/length | 3.9/1.6/42.0 in (100/40/1,067 mm) |
| Fork spread (outside dimensions) | 30.4 in (773 mm) |
| Outrigger ID | 37.1/39.4/41.7/49.0 in (942/1,002/1,060/1,245 mm) |
| Lowered overall height (LOH) | 72.0 in (1,829 mm) |
| Maximum fork height (MFH) | 104.0 in (2,641 mm) |
| Stability (comply with ANSI?) | Yes |
| Size of tire, drive | 9.0 x 4.0 Poly |
| Size of tire, load | 4.0 x 2.8 Poly |
| Ground clearance, no load center wheelbase | 1.5 in (38 mm) |
Power / Engine 8 specs
| Power type | Battery – 24 volt |
|---|---|
| Length to face of forks: 8.0″ battery compartment | 37.3 in (947 mm) |
| Length to face of forks: 9.0″ battery compartment | 38.3 in (973 mm) |
| Total approximate weight without battery | 2,305 lb (1046 kg) |
| Axle load, no load w/min battery drive/load | 1,523/1,092 lb (691/495 kg) |
| Battery, type | Lead acid |
| Battery, minimum weight | 375 lb (170 kg) |
| Traction motor control method | Transistor |
