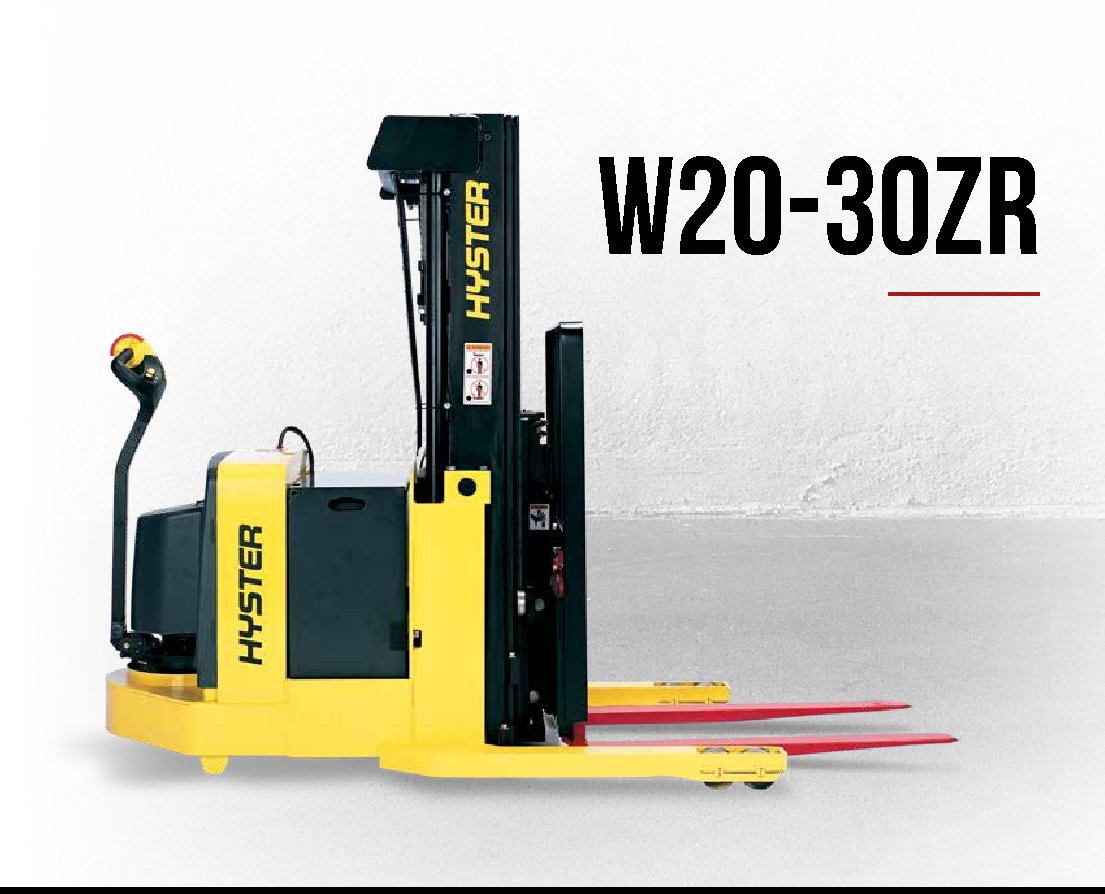

Hyster W30ZR Specs
Quick-reference specifications for the Hyster W30ZR forklift, taken from the manufacturer’s spec sheet.
- Capacity, rated
- 3,000 lb1,360 kg
- Gradeability
- 10.00 %
Performance 10 specs
| Capacity, rated | 3,000 lb (1,360 kg) |
|---|---|
| Tilt of mast – forward/backward | 3/4 degrees |
| Turning radius, minimum outside | 74.2 in (1,885 mm) |
| Travel speed, no load | 3.5 mph (5.6 km/h) |
| Travel speed, rated load | 2.9 mph (4.7 km/h) |
| Lift speed, std. no load | 30.0 ft/min (0.15 m/s) |
| Lift speed, std. rated load | 22.0 ft/min (0.11 m/s) |
| Lowering speed, std. no load | 43.0 ft/min (0.22 m/s) |
| Lowering speed, std. rated load | 45.0 ft/min (0.23 m/s) |
| Gradeability | 10.00 % |
Dimensions 14 specs
| Load center | 24 in (610 mm) |
|---|---|
| Tire type, cushion, solid, pneumatic, etc. | Cushion |
| Standard free-lift (TOF) | 6.5 in (165 mm) |
| Maximum carriage width | 32.5 in (825 mm) |
| Forks, width/thickness/length | 4.0 in/1.5 in/42.0 in (100 mm/40 mm/1,067 mm) |
| Fork spread (outside dimensions) | 30.0 in (762 mm) |
| Length to face of forks | 55.5 in (1,409 mm) |
| Overall width (standard tires) min/max | 35.0 to 49.0 in (889 to 1,245 mm) |
| Lowered overall height (LOH) | 83.0 in (2,108 mm) |
| Maximum fork height (MFH) | 123.0 in (3,124 mm) |
| Overhang, end of outrigger to face of forks | 2.6 in (66 mm) |
| Stability (comply with ANSI?) | Yes |
| Wheelbase | 64.4 in (1,635 mm) |
| Ground clearance, no load center wheelbase | 1.5 in (38 mm) |
Weight 1 spec
| Axle load, no load drive/load | 2,286 lb/1,736 lb (1,037 kg/787 kg) |
|---|
Power / Engine 6 specs
| Power type | 24 V – Electric |
|---|---|
| Total approximate weight without battery | 3,422 lb (1,552 kg) |
| Battery, type | Lead acid |
| Battery, volts/ampere hours | 24 V/510 ah |
| Battery, minimum weight | 600 lb (273 kg) |
| Traction motor control method | Transistor |
