Telehandler · Ingersoll Rand

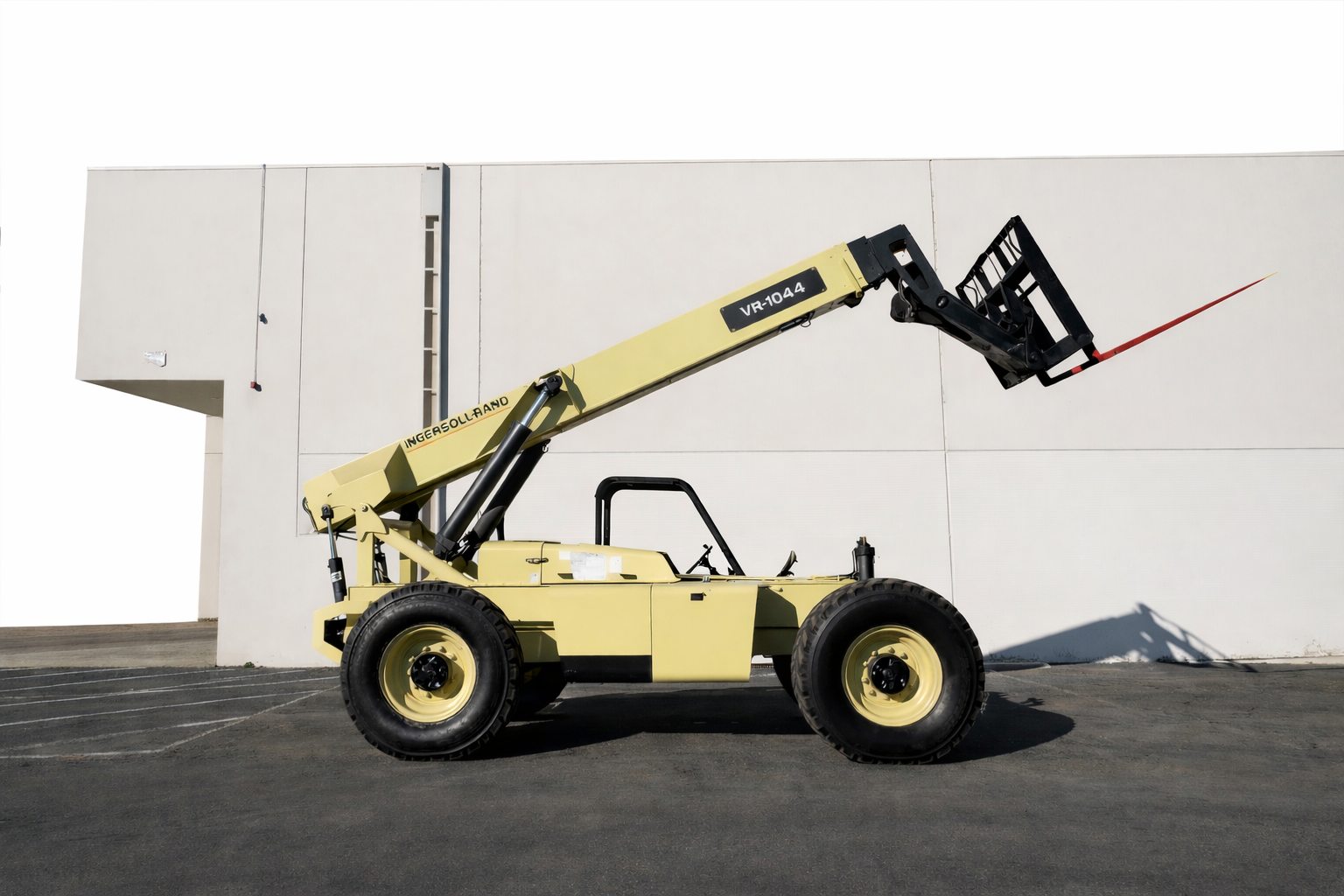

Ingersoll Rand VR-1044 Specs

Quick-reference specifications for the Ingersoll Rand VR-1044 telehandler, compiled from published specifications.

Maximum Lift Capacity: 10,000 lb4,536 kg
Maximum Lift Height: 44 ft13.4 m
Maximum Forward Reach: 44 ft13.4 m
Operating Weight: 27,650 lb12,540 kg

Performance 6 specs

Maximum Lift Capacity	10,000 lb (4,536 kg)
Maximum Lift Height	44 ft (13.4 m)
Maximum Forward Reach	44 ft (13.4 m)
Horsepower	110 HP (82 kW)
Travel Speed	18.6 mph
Turning Radius	12 ft (3.7 m)

Dimensions 5 specs

Overall Length	21 ft 8 in (6.6 m) to 21.6 ft (6.6 m)
Overall Width	8 ft 6 in (2.6 m) to 8 ft (2.4 m)
Overall Height	7 ft 11 in (2.4 m) to 8.8 ft (2.7 m)
Wheelbase	10.2 ft (3.1 m)
Ground Clearance	1.3 ft to 1.5 ft (0.4-0.5 m)

Weight 1 spec

Operating Weight	27,650 lb (12,540 kg)

Power / Engine 3 specs

Engine Model	Cummins QSB4.5-30-T
Displacement	4.5 L
Fuel Capacity	35 gal (132 L)

Hydraulics / Fluids 3 specs

Hydraulic System Pressure	3,600-3,625 psi
Hydraulic Pump Flow	36 gpm
Hydraulic System Capacity	26 gal (98 L)
