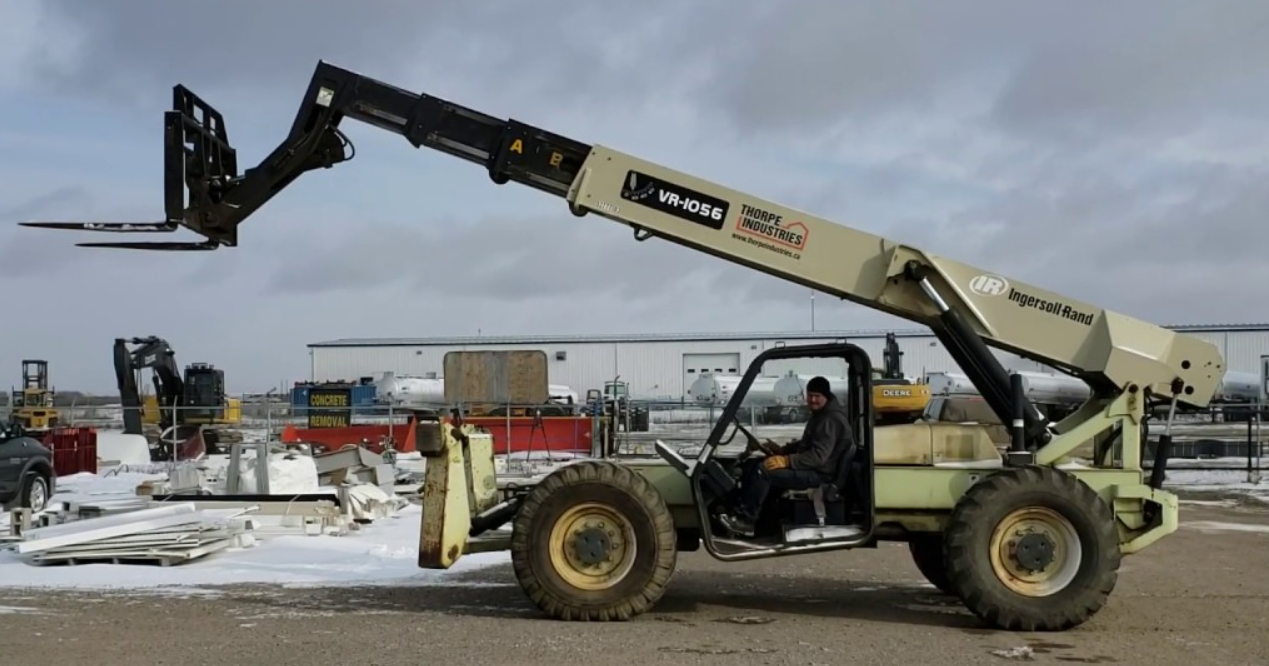

Ingersoll Rand VR-1056 Spec Sheet
Quick-reference specifications for the Ingersoll Rand VR-1056. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Max. lift height: 56′
Max. forward reach (from front of tires to: 24″ load center)
Max. lift capacity: 10,000 lbs.
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Option | 72″ with 45° side swing |
|---|---|
| Max. lift capacity | 10,000 lbs. |
| Max. lift height | 56′ |
| Max. forward reach (from front of tires to | 24″ load center) |
Dimensions
| Practical placement Height | 54′ |
|---|
Weights & Electrical
| Negative ground | 12 volts |
|---|---|
| Alternator | 63 amps |
| Battery | 900 amps |
| Backup alarm | 112 dBA |
| Planetary end (each) | 2 qt. |
| Road Machinery | 312 Ingersoll Drive |
| Note | Capacities are to ASME B56.6-1992 |
| Telescope retract speed | 16.6 sec. |
| Standard | 48″ with load backrest |
| Option | 60″ with load backrest |
| Option | 72″ with load backrest |
| Max. vert. reach below grade | 42″ |
| Max. reach at max. ht. (from front of tires to | 24″ load center) |
Powertrain & Systems
| Horse power | 110 @ 2500 rpm |
|---|---|
| Transmission | 13.6 qt. |
Hydraulics & Capacities
| Cooling | 20 qt. |
|---|---|
| Crankcase | 11.6 qt. |
| front | 15.6 qt. |
| rear | 18 qt. |
| Fuel tank | 35 gal. |
| Hydraulic system | 40 gal. |
| Pump, variable displ. piston | 34 gpm @ 3500 psi |
