Telehandler · JCB

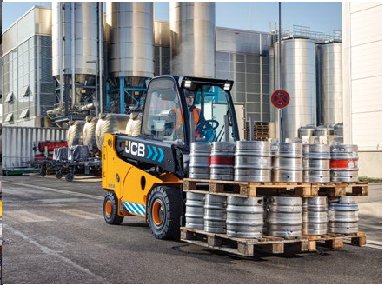

JCB 35-22E Specs
Quick-reference specifications for the JCB 35-22E telehandler, from the manufacturer’s spec sheet and published specifications.
- Max Lift Capacity
- 7,716 lb3,500 kg
- Capacity at 2m Forward Reach
- 4,850 lb2,200 kg
- Operating Weight (unladen)
- 13,114 lb5,950 kg
- Gradeability (unladen)
- 21%
Performance 10 specs
| Hauteur de levage maxi | 4,360 mm |
|---|---|
| Max Lift Capacity | 7,716 lb (3,500 kg) |
| Capacity at 2m Forward Reach | 4,850 lb (2,200 kg) |
| Max Lift Height | 13.1 ft (4.0 m) |
| Free Lift (standard) | 5.2 ft (1,575 mm) |
| Travel Speed | 11.2 mph (18 kph) |
| Gradeability (unladen) | 21% |
| Carriage Tilt | 111 degrees |
| Working Pressure (attachments) | 260 bar |
| Oil Flow (standard/high) | 28/70 lpm |
Dimensions 16 specs
| Dimensions des pneumatiques avant (standard) | 27x10x12 |
|---|---|
| Dimensions des pneumatiques arrière (standard) | 21x8x |
| Lift Height | 13.1 ft (4,000 mm) |
| Height (boom extended) | 15.2 ft (4,625 mm) |
| Height of Overhead Guard | 7.4 ft (2,245 mm) |
| Height of Operator’s Seat | 3.5 ft (1,071 mm) |
| Length to Fork Face | 10.1 ft (3,080 mm) |
| Wheelbase | 5.9 ft (1,800 mm) |
| Maximum Width of Machine | 4.2 ft (1,295 mm) |
| Fork Carriage Width | 3.9 ft (1,200 mm) |
| Ground Clearance (lowest point) | 0.47 ft (143 mm) |
| Ground Clearance (wheelbase centre) | 0.56 ft (172 mm) |
| Load Centre | 500 mm |
| Turning Radius | 8.5 ft (2,590 mm) |
| Maximum Reach Ground Level (500mm load centre) | 7.3 ft (2,230 mm) |
| Maximum Reach Boom Horizontal (500mm load centre) | 7.8 ft (2,390 mm) |
Weight 1 spec
| Operating Weight (unladen) | 13,114 lb (5,950 kg) |
|---|
Power / Engine 2 specs
| Battery Type | 96 V Lithium-ion |
|---|---|
| Battery Power | 50 kW |
Hydraulics / Fluids 3 specs
| Hydraulic Pump Flow (attachments standard) | 28 lpm |
|---|---|
| Hydraulic Pump Flow (attachments high) | 70 lpm |
| Relief Valve Pressure | 260 bar |
