Telehandler · JCB

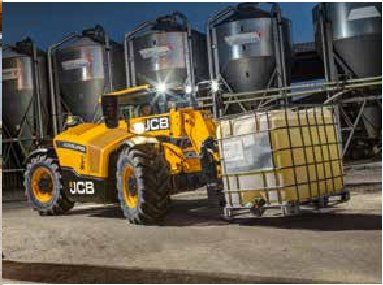

JCB 525-60 AGRI Specs
Quick-reference specifications for the JCB 525-60 AGRI telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 2500 kg
- Reach at maximum lift height
- 0.4 m
- Maximum forward reach (to front of carriage)
- 3.3 m
- Weight
- 5520 kg
Performance 8 specs
| Maximum lift capacity | 2500 kg |
|---|---|
| Lift capacity to full height | 1750 kg |
| Lift capacity at full reach | 800 kg |
| Reach at maximum lift height | 0.4 m |
| Maximum forward reach (to front of carriage) | 3.3 m |
| Noise at the operator station (LpA) | 76 dB |
| Noise emission from the machine (LWA) | 103 dB |
| Hand-arm vibration (m/s) | <2.5 |
Dimensions 14 specs
| Overall height | 1.97 m |
|---|---|
| Overall width (over tyres) | 1.84 m |
| Inside width of cab | 0.88 m |
| Front track | 1.52 m |
| Wheelbase | 2.39 m |
| Overall Length to front tyres | 3.5 m |
| Overall length to front carriage | 4 m |
| Ground clearance | 0.27 m |
| Front wheel centre to carriage | 1.02 m |
| Outside turn radius (over tyres) | 3.4 m |
| Carriage roll back angle | 11 degrees |
| Carriage dump angle | 24 degrees |
| Tyres | 12.5/80R18 Camso IMP |
| Lift height | 6 m |
Weight 1 spec
| Weight | 5520 kg |
|---|
Power / Engine 8 specs
| Displacement | 2.5 ltr |
|---|---|
| No. of cylinders | 4 |
| Power @ 2200rpm | 74 hp (55 kW) |
| Torque @ 1500rpm | 221 lb/ft (300 Nm) |
| Transmission – Low range Forward | 12 kph |
| Transmission – Low range Reverse | 12 kph |
| Transmission – Hi-range Forward | 25 kph |
| Transmission – Hi-range Reverse | 25 kph |
Hydraulics / Fluids 11 specs
| Operating system pressure | 235 bar |
|---|---|
| Flow at system pressure | 80 ltr/min |
| Hydraulic cycle times – Boom raise | 7.6 Seconds |
| Hydraulic cycle times – Boom lower | 5.3 Seconds |
| Hydraulic cycle times – Boom Extend | 7.5 Seconds |
| Hydraulic cycle times – Retract | 3.7 Seconds |
| Hydraulic cycle times – Bucket dump | 1.9 Seconds |
| Hydraulic cycle times – Bucket crowd | 2.9 Seconds |
| Electrical System – System voltage | 12 Volt |
| Service Fill Capacities – Hydraulic tank | 49 litres |
| Service Fill Capacities – Fuel tank | 75 litres |
