Telehandler · JCB

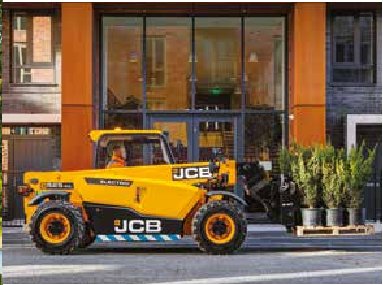

JCB 525-60E Specs
Quick-reference specifications for the JCB 525-60E telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 2500 kg
- Maximum forward reach (to front of carriage)
- 3.5 m
- Weight
- 5200 kg
Performance 6 specs
| Maximum lift capacity | 2500 kg |
|---|---|
| Lift capacity to full height | 2000 kg |
| Lift capacity at full reach | 720 kg |
| Maximum forward reach (to front of carriage) | 3.5 m |
| Travel Speed | 15 kph |
| Traction Max speed | 6000 rpm |
Dimensions 13 specs
| Lift height | 6 m |
|---|---|
| Overall height | 1.89 m |
| Overall width (over tyres) | 1.84 m |
| Inside width of cab | 0.88 m |
| Front track | 1.53 m |
| Wheelbase | 2.39 m |
| Overall Length to front tyres | 3.38 m |
| Overall length to front carriage | 4 m |
| Ground clearance | 0.22 m |
| Front wheel centre to carriage | 1.02 m |
| Outside turn radius (over tyres) | 3.7 m |
| Carriage roll back angle | 11 degrees |
| Carriage dump angle | 114 degrees |
Weight 2 specs
| Weight | 5200 kg |
|---|---|
| Tyres | 12×16.5 industrial |
Power / Engine 3 specs
| Battery type | Lithium-ion |
|---|---|
| System voltage | 96 V |
| Traction Peak torque | 220 Nm |
Hydraulics / Fluids 8 specs
| Hydraulic Max speed | 3000 rpm |
|---|---|
| Hydraulic Peak torque | 130 Nm |
| Operating system pressure | 245 bar |
| Max flow at system pressure | 65 ltr/min |
| Boom raise | 9.9 Seconds |
| Boom lower | 6.2 Seconds |
| Boom extend | 10.3 Seconds |
| Hydraulic system | 45 litres |
