Telehandler · JCB

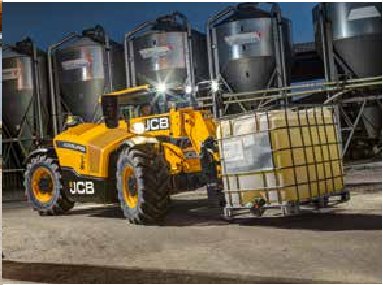

JCB 530-60 AGRI-SUPER Specs
Quick-reference specifications for the JCB 530-60 AGRI-SUPER telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 3000 kg
- Reach at maximum lift height
- 0.45 m
- Maximum forward reach (to front of carriage)
- 3.22 m
- Weight
- 6120 kg
Performance 5 specs
| Maximum lift capacity | 3000 kg |
|---|---|
| Lift capacity to full height | 2000 kg |
| Lift capacity at full reach | 1250 kg |
| Reach at maximum lift height | 0.45 m |
| Maximum forward reach (to front of carriage) | 3.22 m |
Dimensions 14 specs
| Overall height | 2.02 m |
|---|---|
| Overall width (over tyres) | 2.01 m |
| Inside width of cab | 0.88 m |
| Front track | 1.61 m |
| Wheelbase | 2.61 m |
| Overall Length to front tyres | 3.75 m |
| Overall length to front carriage | 4.33 m |
| Ground clearance | 0.23 m |
| Front wheel centre to carriage | 1.13 m |
| Outside turn radius (over tyres) | 3.29 m |
| Carriage roll back angle | 46 degrees |
| Carriage dump angle | 39 degrees |
| Tyres | 400/70R20 Michelin XMCL |
| Lift height | 6.09 m |
Weight 1 spec
| Weight | 6120 kg |
|---|
Power / Engine 2 specs
| Displacement | 4.8 ltr |
|---|---|
| No. of cylinders | 4 |
Hydraulics / Fluids 11 specs
| Operating system pressure | 280 bar |
|---|---|
| Flow at system pressure | 97 ltr/min |
| Hydraulic cycle times – Boom raise | 4.3 Seconds |
| Hydraulic cycle times – Boom lower | 3.5 Seconds |
| Hydraulic cycle times – Boom Extend | 4.8 Seconds |
| Hydraulic cycle times – Retract | 4.0 Seconds |
| Hydraulic cycle times – Bucket dump | 2.2 Seconds |
| Hydraulic cycle times – Bucket crowd | 3.0 Seconds |
| System voltage | 12 Volt |
| Hydraulic tank | 51 litres |
| Fuel tank | 66 litres |
