Telehandler · JCB
JCB 540-140 Specs
Quick-reference specifications for the JCB 540-140 telehandler, compiled from published specifications.
- Max Lift Capacity
- 8,818 lb4,000 kg
- Capacity at Full Forward Reach
- 2,756 lb1.25 t
- Operating Weight
- 23,934 lb10,860 kg
Performance 8 specs
| Max Lift Capacity | 8,818 lb (4,000 kg) |
|---|---|
| Max Lift Height | 45 ft 3 in (13.8 m) |
| Max Horizontal Reach | 30.4 ft (9.25 m) |
| Capacity at Full Forward Reach | 2,756 lb (1.25 t) |
| Capacity at Full Lift Height | 8,818 lb (4 t) |
| Travel Speed | 19.9 mph (32 km/h) |
| Turning Radius (Outside Tires) | 13.5 ft (4.11 m) |
| Max Operating Pressure (Hydraulic) | 3,500 psi (241 bar) |

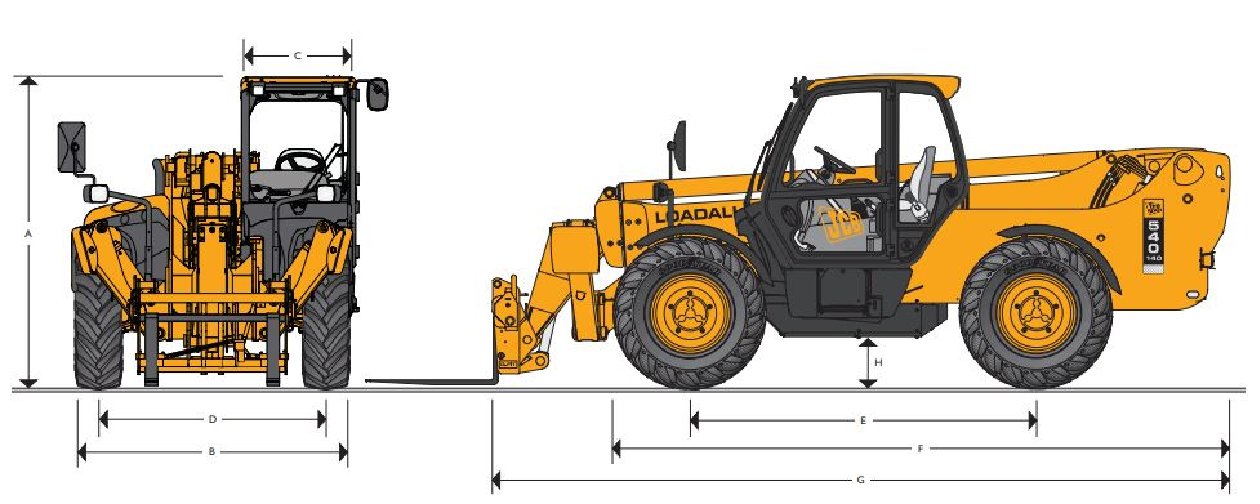

Dimensions 7 specs
| Overall Height | 8.5 ft (2.59 m) |
|---|---|
| Overall Width | 7.8 ft (2.35 m) |
| Transport Length | 20.5 ft (6.25 m) |
| Length to Fork Face | 20.6 ft (6.28 m) |
| Wheelbase | 9.6 ft (2.93 m) |
| Ground Clearance | 14.4 in (36.6 cm) |
| Dump Angle | 9.8 degrees |
Weight 1 spec
| Operating Weight | 23,934 lb (10,860 kg) |
|---|
Power / Engine 5 specs
| Displacement | 268.6 cu in (4.4 L) |
|---|---|
| Engine Power | 125 hp (93 kW) |
| Max Torque | 236.1 lb-ft (320.1 Nm) |
| Number of Cylinders | 4 |
| Cylinder Bore x Stroke | 103 x 132 mm |
Hydraulics / Fluids 4 specs
| Hydraulic Pump Capacity | 103 L |
|---|---|
| Relief Valve Pressure | 3,500 psi |
| Raise Time | 15.1 seconds |
| Lower Time | 15.5 seconds |
