Telehandler · JCB
JCB 540V140 Specs
Quick-reference specifications for the JCB 540V140 telehandler, compiled from published specifications.
- Max Lift Capacity
- 8,818 lb4,000 kg
- Operating Weight
- 24,000 lb10,880 kg
Performance 6 specs
| Max Lift Capacity | 8,818 lb (4,000 kg) |
|---|---|
| Max Lift Height | 45 ft 2 in (13.78 m) |
| Max Forward Reach | 32 ft (9.75 m) |
| Travel Speed | 20 mph (32 km/h) |
| Lift Capacity at Full Height | 6,614 lb (3,000 kg) |
| Lift Capacity at Full Forward Reach | 2,205 lb (1,000 kg) |

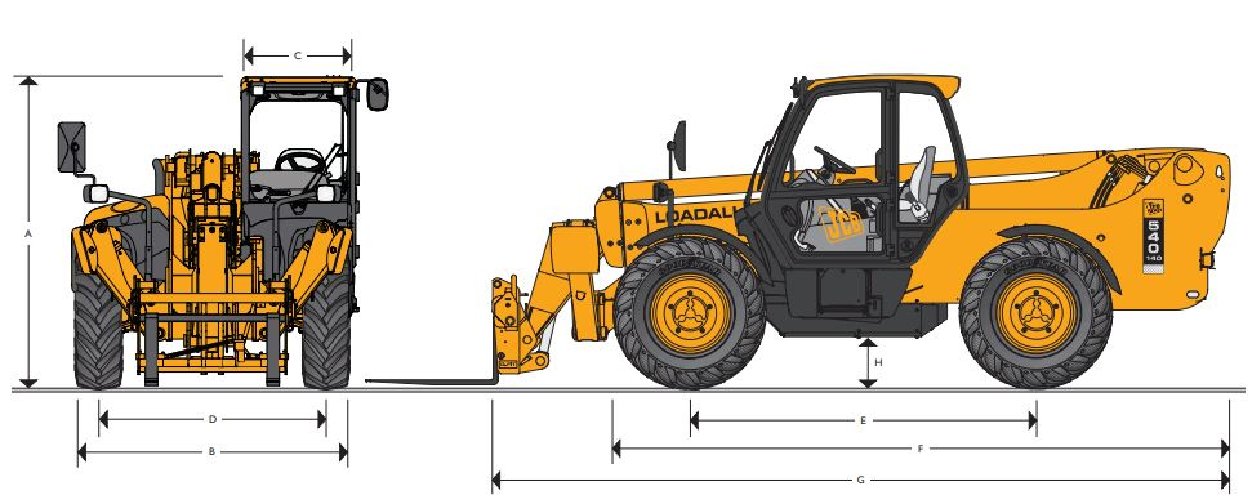

Dimensions 5 specs
| Overall Height | 8 ft 6 in (2.59 m) |
|---|---|
| Overall Width (over tires) | 7 ft 8 in (2.35 m) |
| Overall Length to Front Carriage | 20 ft 5 in – 20 ft 6 in (6.23-6.25 m) |
| Wheelbase | 9 ft (2.75 m) |
| Ground Clearance | 1 ft 4 in (0.4 m) |
Weight 1 spec
| Operating Weight | 24,000 lb (10,880 kg) |
|---|
Power / Engine 3 specs
| Engine Power | 55 kW (75 hp) @ 2,200 rpm |
|---|---|
| Number of Cylinders | 4 |
| Fuel Tank Capacity | 38.5 gal (146 L) |
Hydraulics / Fluids 3 specs
| Hydraulic System Capacity | 39.6 gal (150 L) |
|---|---|
| Max Operating Pressure | 3,495 psi (241 bar) |
| Relief Valve Pressure | 3,500 psi |
