Telehandler · JCB

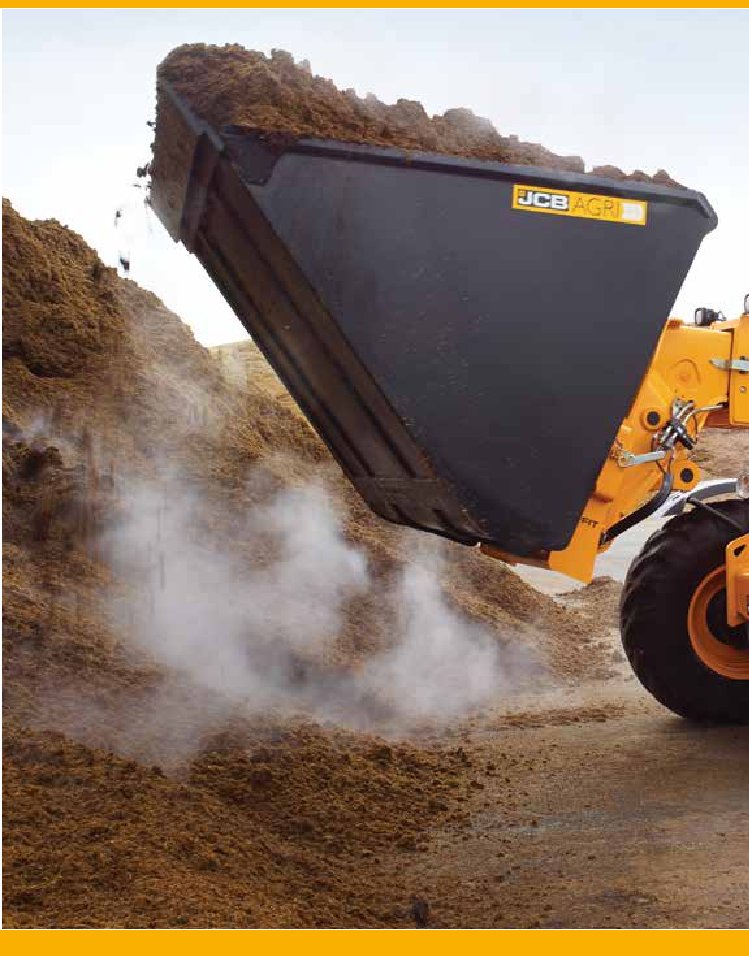

JCB 560-80 AGRI PLUS Specs
Quick-reference specifications for the JCB 560-80 AGRI PLUS telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity
- 6000 kg
- Reach at maximum lift height
- 0.92 m
- Maximum forward reach
- 4.41 m
- Weight
- 10750 kg
Performance 5 specs
| Maximum lift capacity | 6000 kg |
|---|---|
| Lift capacity to full height | 3000 kg |
| Lift capacity at full reach | 1750 kg |
| Reach at maximum lift height | 0.92 m |
| Maximum forward reach | 4.41 m |
Dimensions 14 specs
| Overall height | 2.59 m |
|---|---|
| Overall width (over tyres) | 2.54 m |
| Inside width of cab | 0.94 m |
| Front track | 1.98 m |
| Wheelbase | 2.75 m |
| Overall Length to front of tyres | 4.42 m |
| Overall length to front of carriage | 5.27 m |
| Ground clearance | 0.4 m |
| Outside turn radius (over tyres) | 4.1 m |
| Carriage rollback angle | 47 degrees |
| Carriage dump angle | 33 degrees |
| Tyres | 500/70 R24 |
| Lift height | 7.9 m |
| Placing height | 6.64 m |
Weight 1 spec
| Weight | 10750 kg |
|---|
Power / Engine 7 specs
| Emissions level | Tier 4i/Stage IIIB |
|---|---|
| Displacement | 4.4/4.8 litres |
| No of Cylinders | 4 |
| Engine oil service intervals | 500 hours |
| System voltage | 12 Volt |
| Engine oil sump | 14 litres |
| Engine coolant system | 23 litres |
Hydraulics / Fluids 6 specs
| Fuel tank | 146 litres |
|---|---|
| Hydraulic tank | 112 litres |
| Operating system pressure | 260 bar |
| Main hydraulics | 140 l/min |
| Boom raise | 7.4 seconds |
| Boom lower | 8.3 seconds |
