JCB 950 Specs
Quick-reference specifications for the JCB 950 telehandler, taken from the manufacturer’s spec sheet.
Performance 4 specs
| Travel speeds – Gear 1 | 3.2 mph |
|---|---|
| Travel speeds – Gear 2 | 5.3 mph |
| Travel speeds – Gear 3 | 10.1 mph |
| Travel speeds – Gear 4 | 18.4 mph |
Dimensions 11 specs
| Overall cab height | 8 ft 4 in ft in |
|---|---|
| Overall width (over tires) | 7 ft 2 in ft in |
| Overall length to front carriage | 11 ft 9 in ft in |
| Inside width of cab | 3 ft 6 in ft in |
| Front track | 5 ft 9 in ft in |
| Ground clearance | 10 in ft in |
| Load center | 21 in ft in |
| Outside turn radius 2WD | 14 ft 7.2 in ft in |
| Outside turn radius 4WD | 16 ft 1.7 in ft in |
| Departure angle | 53° |
| Obstruction angle | 51° |
Weight 1 spec
| Machine weight with following mast – 22′ 0″ Clearview | 17,295 lb |
|---|

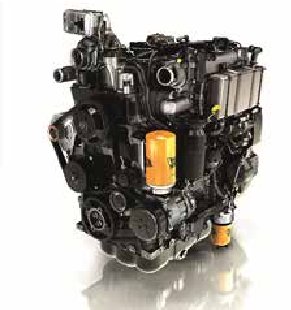

Power / Engine 15 specs
| Displacement | 4.4 liters |
|---|---|
| Fuel | Diesel |
| Gross power – ISO 14396 @2000 rpm | 74 hp |
| Gross torque – ISO 14396 @1300 rpm | 295 lb-ft |
| Emission certification | TIER IV FINAL |
| Engine oil service intervals | 500 hours |
| Transmission – Manufacturer | JCB |
| Transmission – Type | Syncroshuttle |
| Transmission – Torque converter | 11 inches |
| Transmission – Torque converter ratio | 2.20:1 |
| Transmission – Gear selection | Manual |
| Transmission – Shuttle control – F/R | Power shuttle |
| Service Capacities – Engine oil sump | 2.6 gal |
| Service Capacities – Transmission oil system | 4 gal |
| Service Capacities – Engine coolant system | 3.7 gal |
Hydraulics / Fluids 4 specs
| Tires – Standard Tires | 15.5-25 |
|---|---|
| Electrical System – System voltage | 12 Volt |
| Service Capacities – Fuel tank | 19.3 gal |
| Service Capacities – Hydraulic tank | 13.1 gal |
