Telehandler · JCB

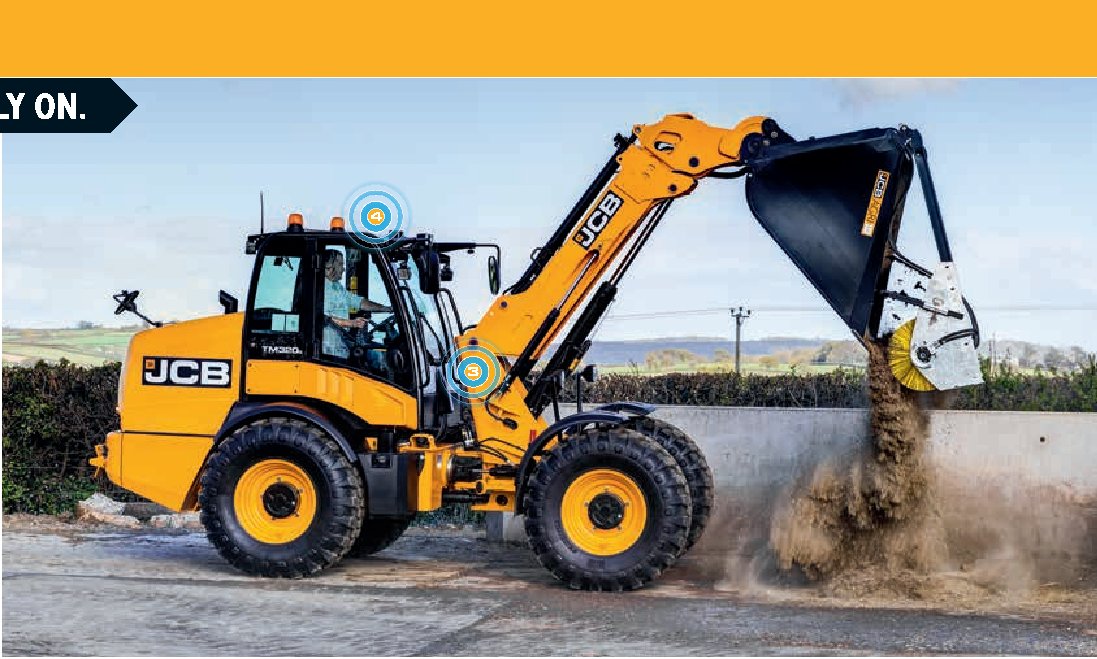

JCB TM320S AGRI Specs
Quick-reference specifications for the JCB TM320S AGRI telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift capacity to full height with forks
- 3200 kg
- Capacity
- 4.8 ltr
- Maximum forward reach
- 2950 mm
- Operating weight
- 8160 kg
Performance 15 specs
| Capacity | 4.8 ltr |
|---|---|
| Dump reach | 933 mm |
| Articulation angle | ±43° degrees |
| Max travel speed | 40 kph |
| Chassis angle oscillation | ±10º degrees |
| AXLES – Maximum travel speed | 40 kph |
| Whole body vibration | 0.39 +/- 0.11 dB m/s² |
| Hand-arm vibration | <2.5 m/s² |
| Maximum lift capacity to full height with forks | 3200 kg |
| Lift capacity at full reach | 1750 kg |
| Maximum forward reach | 2950 mm |
| Straight tipping load – forks with 500mm load centre | 5262 kg |
| Full turn tipping load – forks calculated @ 80% load factor | 3242 kg |
| Full turn tipping load – forks calculated @ 60% load factor | 2431 kg |
| Breakout force – tearout | 6260 kg |
Dimensions 17 specs
| Overall height | 2703 mm |
|---|---|
| Overall width (over tyres) | 2350 mm |
| Wheelbase | 2550 mm |
| Ground clearance | 472 mm |
| Height to top of boom pivot | 1835 mm |
| Wheel track | 1870 mm |
| Axle to shovel toe plate | 1627 mm |
| Axle to counterweight face | 2143 mm |
| Total length | 6322 mm |
| Dump height | 4511 mm |
| Pin height | 5367 mm |
| Maximum dump angle | 39 degrees |
| Total length to front of hitch | 5886 mm |
| Inside radius | 2001 mm |
| Outside radius (edge of tyre) | 4350 mm |
| Outside radius (over shovel) | 4633 mm |
| Lift height | 5200 mm |
Weight 3 specs
| Operating weight | 8160 kg |
|---|---|
| Front axle weight | 2730 kg |
| Rear axle weight | 5470 kg |
Power / Engine 13 specs
| Number of cylinders | 4 |
|---|---|
| Gross torque | 560 @ 1500 rpm Nm |
| Tyres used for specifications | Michelin XMCL 460/70R24 |
| Make | JCB |
| AXLES – Machine model | TM320S |
| AXLES – Type | Epicyclic hub reduction |
| AXLES – Model | Max-Trac |
| Overall axle ratio/ drop box ratio | 13.71 |
| Service brakes | In board oil immersed brakes |
| Noise at the operator station LpA | 73 dB +/- 1 dB |
| Noise emission from the machine LWA | 107 dB +/- 1 dB |
| Engine oil sump | 14 litres |
| System voltage | 12 Volt |
Hydraulics / Fluids 10 specs
| Hydraulic tank & transmission | 97 litres |
|---|---|
| Fuel tank | 160 litres |
| Axle oil (front) including hubs | 20 litres |
| Axle oil (rear) including hubs | 20 litres |
| Pump type | Variable displacement piston pump |
| Pump maximum flow | 160 l/min |
| Pump maximum pressure | 230 bar |
| Boom raise | 5.2 seconds |
| Boom lower | 5.6 seconds |
| Total cycle time | 22.4 seconds |
