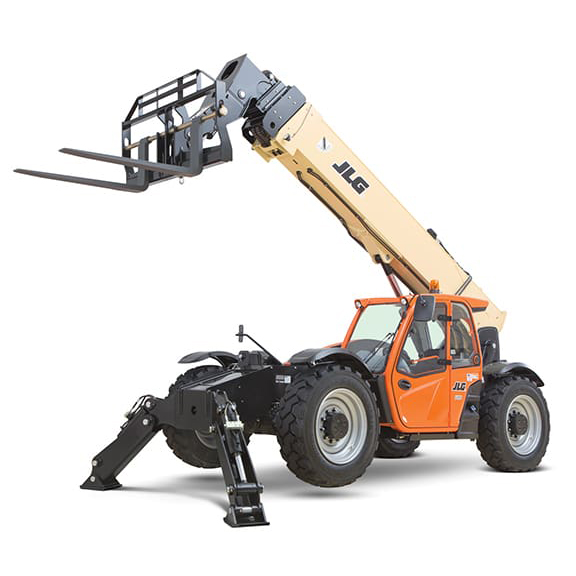

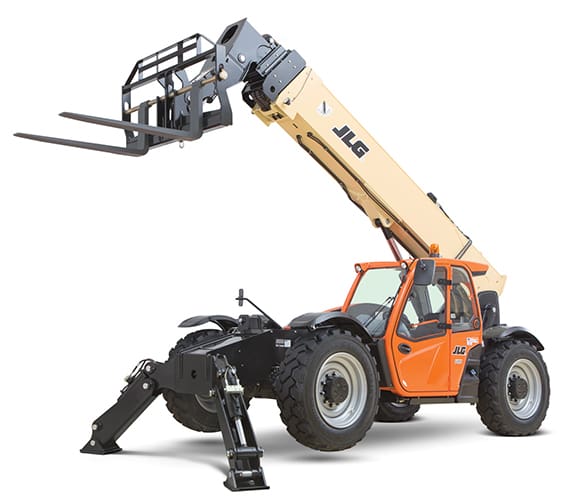

JLG 1255 Spec Sheet
Quick-reference specifications for the JLG 1255. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 12,000 lb
Maximum Lift Height: 55 ft
Maximum Forward Reach: 42 ft
Operating Weight: 33,960 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Truss Boom 3 ft (winch), 4,000 lb Capacity 0.9 m, | 1,814 kg Capacity |
|---|---|
| Fork Mounted Work Platform 8 ft, | 6,000 lb Capacity |
| Pipe Grapple 72 in., | 6,000 lb Capacity |
| Material Handling Arm | 4,000 lb Capacity |
| Rated Capacity | 12,000 lb |
| Maximum Lift Height | 55 ft |
| Maximum Forward Reach | 42 ft |
| Frame Leveling | 10° |
| Top Travel Speed (4-Speed) | 20 mph |
| Drawbar Pull (loaded) | 25,400 lb |
| Outside Turning Radius | 14 ft |
Dimensions
| Load at Max Height | 5,000 lb |
|---|
Weights & Electrical
| Load at Max Reach | 3,500 lb |
|---|---|
| Retracted | 15 sec |
| Operating Weight | 33,960 lb |
| Displacement | 231.9 cu in. |
| notification. This machine meets or exceeds applicable OSHA Regulations in | 29 CFR |
Powertrain & Systems
| Gross Power Basic | 130 hp |
|---|---|
| Transmission Powershift 4-speed forward and | 3-speed reverse. |
| Axles Trunnion mounted planetary | 45° steer axles. Integral steer cylinder. |
| Hydraulic power steering with manual backup. Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front. |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 38.3 gal |
|---|---|
| Capacity | 49.9 gal |
