12K Telehandler · JLG

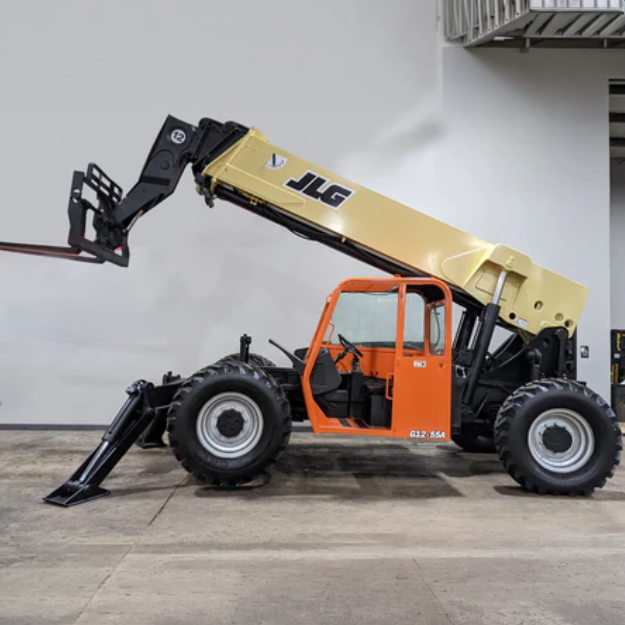

JLG G12-55A AccuPlace Specs
Quick-reference specifications for the JLG G12-55A AccuPlace telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 12,000 lb5,443 kg
- Maximum Lift Height
- 55 ft16.76 m
- Maximum Forward Reach
- 42 ft12.8 m
- Operating Weight
- 35,860 lb16,266 kg
Performance 10 specs
| Rated Capacity | 12,000 lb (5,443 kg) |
|---|---|
| Maximum Forward Reach | 42 ft (12.8 m) |
| Load at Max Reach | 3,500 lb (1,588 kg) |
| Frame Leveling | 10° |
| Lift Speed (boom retracted) – Down | 15 sec |
| Boom Speed – Extended | 17 sec |
| Boom Speed – Retracted | 13 sec |
| Top Travel Speed (4-Speed) | 20 mph (32 kph) |
| Drawbar Pull (loaded) | 24,000 lb (10,886 kg) |
| Outside Turning Radius | 14.5 ft (4.41 m) |
Dimensions 2 specs
| Maximum Lift Height | 55 ft (16.76 m) |
|---|---|
| Load at Max Height | 5,000 lb (2,268 kg) |
Weight 1 spec
| Operating Weight | 35,860 lb (16,266 kg) |
|---|
Power / Engine 5 specs
| Make and Model | Cummins QSB4.5L ATAAC |
|---|---|
| No. of Cylinders | 4 |
| Displacement | 276 cu in (4.5 L) |
| Gross Power Basic | 130 hp (97 kW) |
| Maximum Torque @ 1500 rpm | 457 lb-ft (619 Nm) |
Hydraulics / Fluids 2 specs
| Hydraulic System-Implement – Capacity | 60 gal (227.1 L) |
|---|---|
| Fuel Tank Capacity | 38 gal (144 L) |
