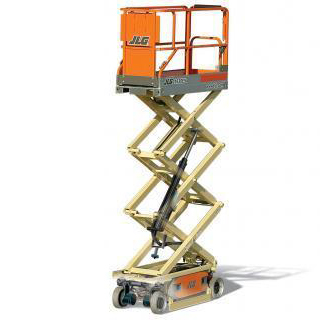

JLG 1532E3 Specs
Quick-reference specifications for the JLG 1532E3 scissor lift, compiled from published specifications.
- Platform Capacity
- 600 lb270 kg
- Gradeability
- 25%
Performance 6 specs
| Platform Capacity | 600 lb (270 kg) |
|---|---|
| Manual Platform Extension Capacity | 265 lb (120 kg) – 1 person |
| Gradeability | 25% |
| Inside Turning Radius | 3 in (7.6 cm) |
| Inside Turning Angle | 87° |
| Lift Time (No Load) – Down | 24-32 seconds |
Dimensions 6 specs
| Machine Height (Platform Fully Elevated) | 15 ft (4.6 m) |
|---|---|
| Machine Height (Platform Lowered) | 75.75 in (1.9 m) |
| Platform Size | 30 in x 64 in (0.8 m x 1.6 m) |
| Machine Length | 71.25 in (1.8 m) |
| Wheelbase | 50.0 in (1.3 m) |
| Ground Clearance | 3 in (7.6 cm) |
Weight 1 spec
| Machine Weight (Domestic/CSA) | 2630 lb (1193 kg) |
|---|
Power / Engine 1 spec
| Drive Motors Displacement | 9.9 in³ (160 cm³) |
|---|
Hydraulics / Fluids 3 specs
| Main Relief Pressure | 3000 psi (207 bar) |
|---|---|
| Steer Relief Pressure | 2100 psi (145 bar) |
| Lift Up Relief Pressure | 1625 psi (112 bar) |
