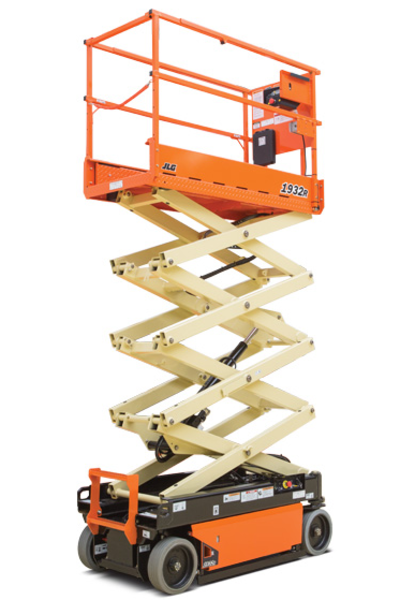

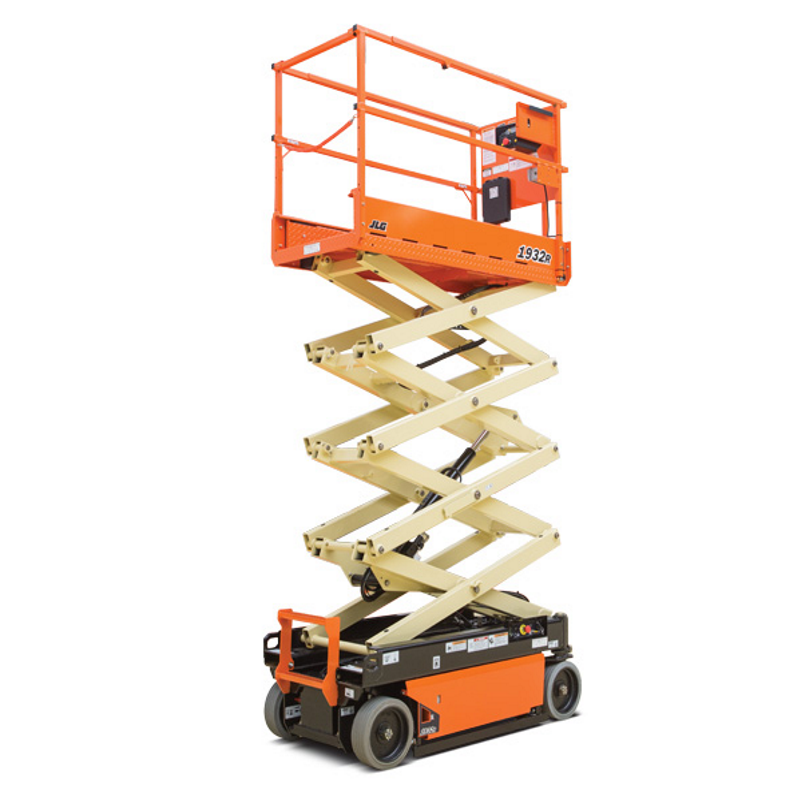

JLG 1932R Specs
Quick-reference specifications for the JLG 1932R scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 550 lb250 kg
- Capacity on Platform Extension
- 250 lb113 kg
- Platform Height–Elevated
- 19 ft5.8 m
- Platform Height–Lowered
- 38.6 in0.98 m
Performance 6 specs
| Platform Capacity | 550 lb (250 kg) |
|---|---|
| Capacity on Platform Extension | 250 lb (113 kg) |
| Lift/Lower Time | 25/26 seconds |
| Drive Speed–Elevated | 0.5 mph (0.8 km/h) |
| Drive Speed–Lowered | 2 mph (3.2 km/h) |
| Gradeability | 25% |
Dimensions 10 specs
| Platform Height–Elevated | 19 ft (5.8 m) |
|---|---|
| Overall Width | 32 in (81 cm) |
| Overall Length | 68.7 in (1.74 m) |
| Wheelbase | 53 in (1.34 m) |
| Ground Clearance | 2.8 in (7 cm) |
| Platform Height–Lowered | 38.6 in (0.98 m) |
| Platform Railing Height | 39.9 in (1.02 m) |
| Overall Height | 78.5 in (1.99 m) |
| Platform Size | 25.4 in x 62.7 in (0.64 m x 1.59 m) |
| Platform Extension | 36 in (91 cm) |
Weight 1 spec
| Ground Bearing Pressure | 101 psi (7.66 kg/cm2) |
|---|
Power / Engine 1 spec
| Batteries | 4 x 6 V 220 amp-hr |
|---|
