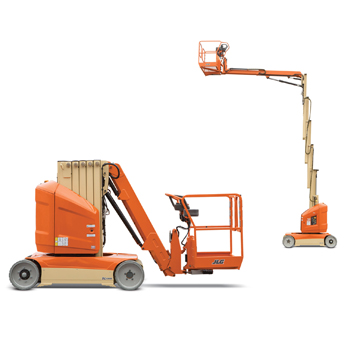

JLG 15DVL Specs
Quick-reference specifications for the JLG 15DVL vertical mast, taken from the manufacturer’s spec sheet.
- Platform Capacity: Slide-Rail Platform
- 500 lb227 kg
- Platform Height
- 15 ft 4 in4.69 m
- Working Height
- 21 ft 4 in6.52 m
- Gradeability
- 30%
Performance 10 specs
| Working Height | 21 ft 4 in (6.52 m) |
|---|---|
| Platform Capacity: Slide-Rail Platform | 500 lb (227 kg) |
| Platform Capacity: Oversized Platform | 500 lb (227 kg) |
| Platform Capacity: Narrow Platform | 500 lb (227 kg) |
| Platform Capacity: Molded Platform | 500 lb (227 kg) |
| Platform Capacity: Extension Platform | 500 lb (227 kg) |
| Drive Maximum Speed: Platform Lowered | 2.5 mph (4 kph) |
| Drive Maximum Speed: Platform Elevated | 0.6 mph (1 kph) |
| Gradeability | 30% |
| Drive System | Direct Electric |
Dimensions 14 specs
| Platform Height | 15 ft 4 in (4.69 m) |
|---|---|
| Drive Height | Max. Platform Height |
| Stowed Height | 78 in (198 cm) |
| Platform Entry Height | 19 in (48 cm) |
| Overall Vehicle Length: Chassis Length | 51.5 in (131 cm) |
| Overall Vehicle Length: Extension Platform Retracted | 53 in (135 cm) |
| Overall Vehicle Length: All Other Platforms | 51.5 in (131 cm) |
| Overall Vehicle Width: Chassis Width | 29.5 in (75 cm) |
| Overall Vehicle Width: Extension Platform | 31.5 in (80 cm) |
| Overall Vehicle Width: All Other Platforms | 29.5 in (75 cm) |
| Underclearance | 2 in (5 cm) |
| Wheel Diameter & Width: Rear Drive & Steer Wheels | 10 in x 3 in (25 cm x 8 cm) |
| Wheel Diameter & Width: Front Caster Wheels | 8 in x 2.5 in (20 cm x 6 cm) |
| Tire Material | Non-Marking Polyurethane |
Weight 3 specs
| Gross Vehicle Weight: Slide-Rail & Gull Wing Platforms | 2035 lb (923 kg) |
|---|---|
| Gross Vehicle Weight: Molded Platform | 2050 lb (930 kg) |
| Gross Vehicle Weight: Extension Platform | 2105 lb (955 kg) |
Power / Engine 2 specs
| Batteries | Two Sealed 100 AH 12 Volt |
|---|---|
| Battery Charger | 20 Amp |
