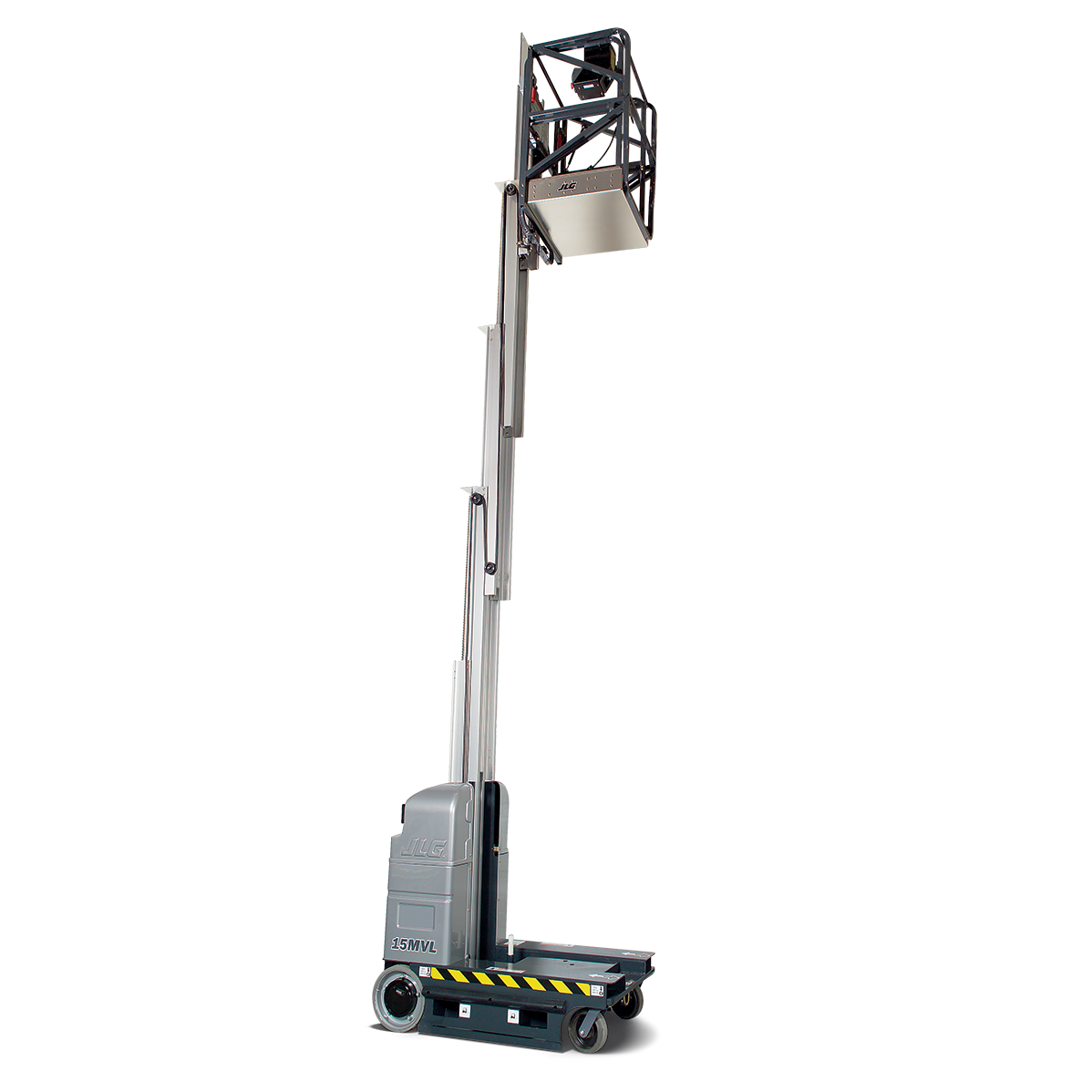

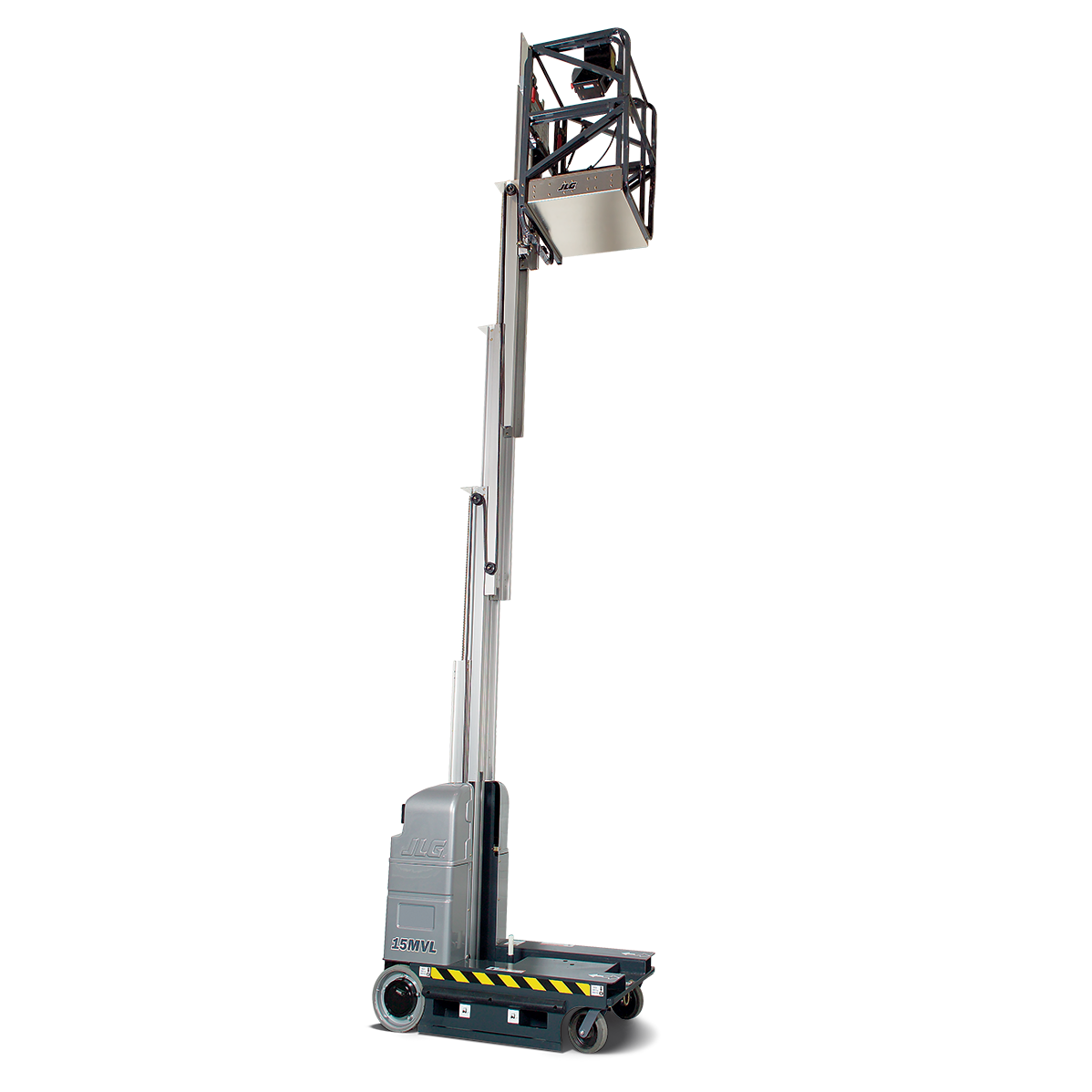

JLG 15MVL Specs
Quick-reference specifications for the JLG 15MVL vertical mast, taken from the manufacturer’s spec sheet.
- Working Height
- 6.71 m
- Gradeability
- 20%
Performance 5 specs
| Working Height | 6.71 m |
|---|---|
| Drive Maximum Speed – Platform Lowered | 5.4 km/h |
| Drive Maximum Speed – Platform Elevated | 0.8 km/h |
| Gradeability | 20% |
| Wheel Diameter – Rear Drive & Steer Wheels | 32 cm x 10 cm |
Dimensions 9 specs
| Max Drive Height | 4.71 m |
|---|---|
| Platform Size – Stockpicking Platform (W x L) | 0.71 m x 1.22 m |
| Platform Size – Narrow Platform (W x L) | 0.56 m x 0.64 m |
| Stowed Height | 1.98 m |
| Platform Entry Height | 0.46 m |
| Vehicle Length – Extension Platform Retracted | 1.36 m |
| Vehicle Length – Stock Picking Platform | 1.88 m |
| Overall Width | 0.75 m |
| Ground Clearance | 5 cm |
Weight 4 specs
| Machine weight – All Other Platforms | 1,060 kg |
|---|---|
| Machine weight – Extension Platform | 1,090 kg |
| Max. Ground Bearing Pressure Front Casters | 22.60 kg/cm² |
| Max. Ground Bearing Pressure Rear Wheels | 8.10 kg/cm² |
