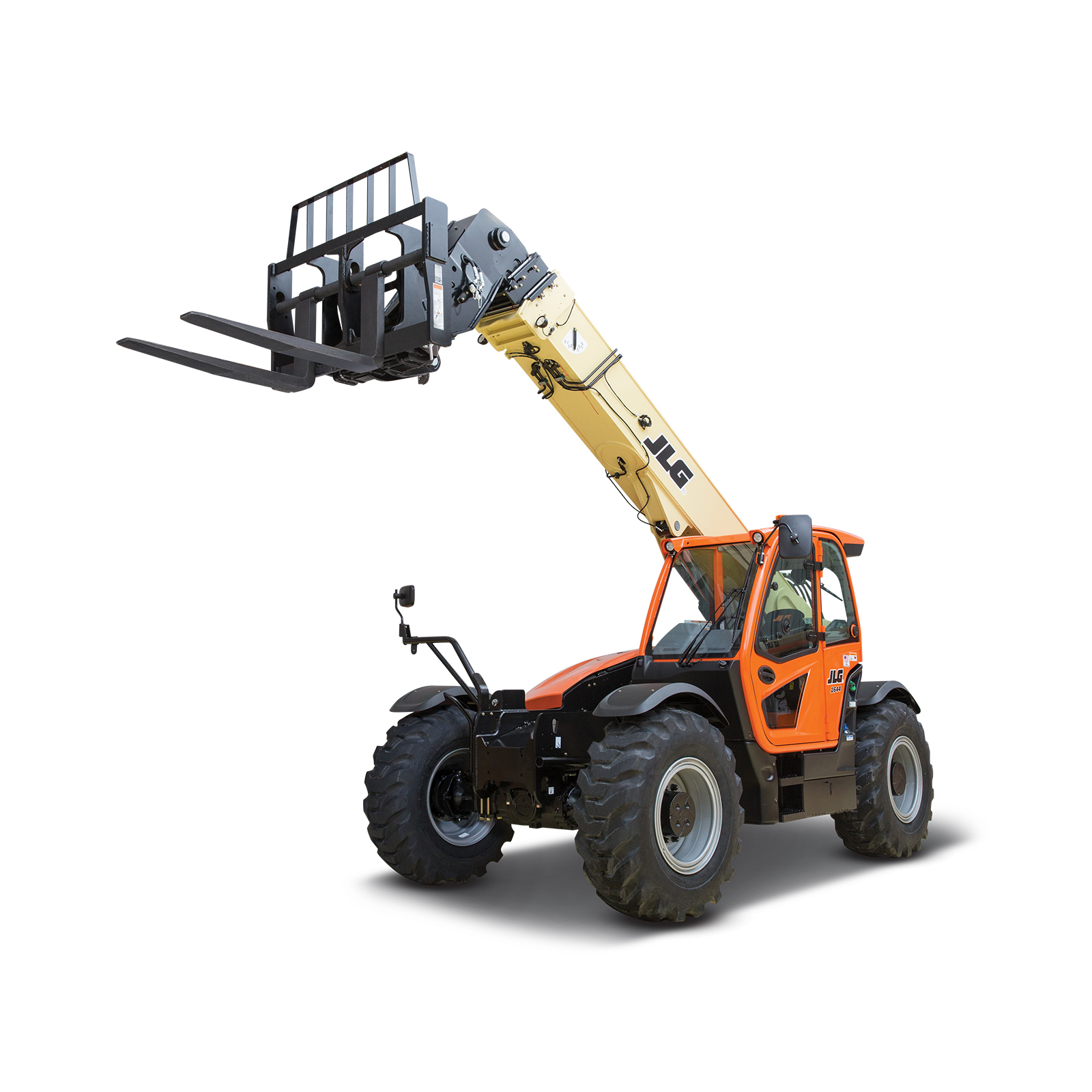

JLG 1644 Spec Sheet
Quick-reference specifications for the JLG 1644. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 15,650 lb
Maximum Lift Height 43 ft: 7 in.
Maximum Forward Reach 31 ft: 1 in.
Operating Weight: 33,660 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 15,650 lb |
|---|---|
| Maximum Lift Height 43 ft | 7 in. |
| Maximum Forward Reach 31 ft | 1 in. |
| Frame Leveling | 8 degrees |
| Top Travel Speed | 20 mph |
| Drawbar Pull (loaded) | 23,000 lb |
| Outside Turning Radius 13 ft | 2 in. |
| Material Handling Arm | 16,750 lb Capacity |
| Hook, Coupler-mounted | 16,750 lb Capacity |
| Bale Cradle, Round Bale | 7,000 lb Capacity |
| Pipe Grapple 96 in., | 8,000 lb Capacity |
| Log Handler 80 in., | 8,000 lb Capacity |
| Steel Coil Handler | 16,750 lb Capacity |
| Lifting Hook, Fork-mounted | 15,000 lb Capacity |
| Extendable Truss, Fork-mounted | 8,000 lb Capacity |
Dimensions
| Load at Max Height | 6,750 lb |
|---|
Weights & Electrical
| Load at Max Reach | 2,000 lb |
|---|---|
| Retracted | 12.3 sec |
| Operating Weight | 33,660 lb |
| Displacement | 220 cu in. |
| Bale Clamp, Square Bale | 10,000 lb Capacity |
Powertrain & Systems
| Gross Basic Power | 134 hp |
|---|---|
| Transmission Hydrostatic | 2-speed |
| Axles Trunnion mounted planetary | 45 degree steer axles. |
| Hydraulic power steering Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 39 gal. |
|---|---|
| Capacity | 67 gal |
