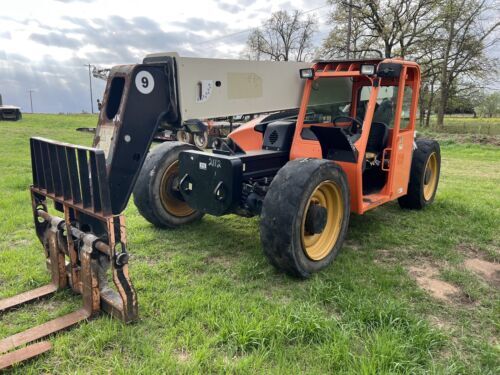

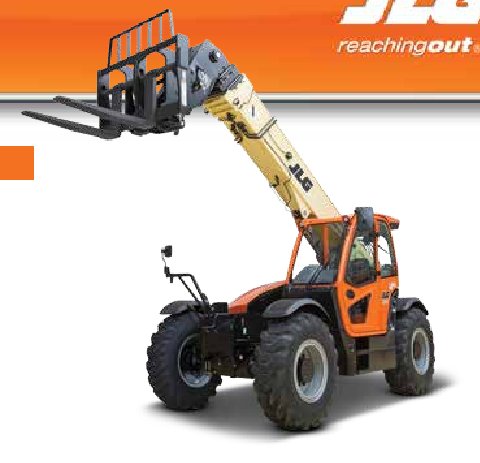

JLG 7013H Spec Sheet
Quick-reference specifications for the JLG 7013H. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 7,100 kg
Maximum Lift Height: 13.28 m
Maximum Forward Reach: 9.47 m
Operating Weight: 15,265 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 7,100 kg |
|---|---|
| Maximum Lift Height | 13.28 m |
| Maximum Forward Reach | 9.47 m |
| Frame Leveling | 8 degrees |
| Top Travel Speed | 32 kph |
| Drawbar Pull (loaded) | 102 kN |
| Outside Turning Radius | 4.01 m |
| Capacity | 25.5 L |
Dimensions
| Load at Max Height | 3,062 kg |
|---|
Weights & Electrical
| Load at Max Reach | 907 kg |
|---|---|
| Retracted | 12.3 sec |
| Operating Weight | 15,265 kg |
| Displacement | 3.6 L |
| Bale Clamp, Square Bale | 4,536 kg |
| notification. This machine meets or exceeds applicable OSHA Regulations in | 29 CFR |
Powertrain & Systems
| Gross Basic Power | 100 kW |
|---|---|
| Transmission Hydrostatic | 2-speed |
| Axles Trunnion mounted planetary | 45 degree steer axles. |
| Hydraulic power steering Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 148 L |
|---|
Lubricants & Fluids
| Steel Coil Handler | 7,598 kg |
|---|
