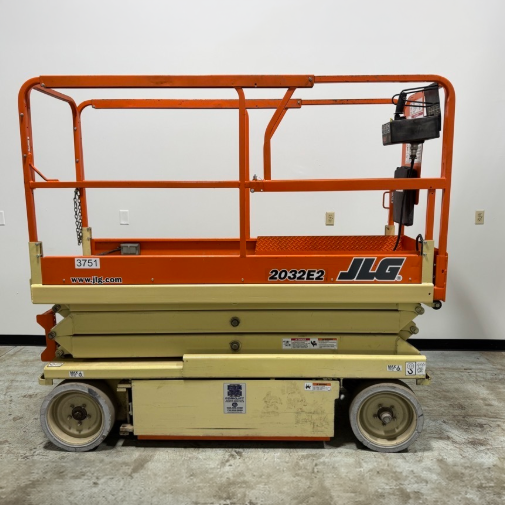

JLG 2032E2 Specs

Quick-reference specifications for the JLG 2032E2 scissor lift, compiled from published specifications.

Platform Height (Elevated): 90 in2.3 m
Platform Height: 20 ft6.10 m

Performance 8 specs

Platform Height	20 ft (6.10 m)
Maximum Work Load / Capacity	750 lb (340 kg)
Platform Extension Capacity	250 lb (120 kg)
Hydraulic Pump Displacement	229.4 cm³
Maximum Hydraulic System Pressure	207 bar
Electrical System Voltage	24 Volt
Hydraulic Reservoir Capacity (Full Mark)	14.8 liters
Hydraulic System Total Volume	19.0 liters

Dimensions 7 specs

Platform Length	31 in x 84 in (0.79 m x 2.13 m)
Machine Width	31.75 in (0.81 m)
Platform Height (Elevated)	90 in (2.3 m)
Machine Height (Stowed)	6 ft 7.5 in (2.02 m)
Length (Stowed)	7 ft 5 in (2.26 m)
Wheelbase	1.7 m
Inside Turning Radius	1.0 m

Weight 6 specs

Gross Machine Weight (Platform Empty)	4,610 lb (2091 kg)
Platform Assembly	388 lb (176 kg)
Manual Platform Extension	156 lb (71 kg)
Arm Assembly with Lift Cylinder	1,052 lb (477 kg)
Batteries (4x 6V, Combined)	252 lb (114 kg)
Maximum Tire Load	1,460 lb (662 kg)

Power / Engine 1 spec

Power Source	24 Volts DC Electric Motor

Hydraulics / Fluids 8 specs

Lift Cylinder Bore	3.50 in (8.9 cm)
Lift Cylinder Stroke	38.87 in (98.7 cm)
Lift Cylinder Rod Diameter	2.00 in (5.1 cm)
Brake Cylinder Bore	2.00 in
Brake Cylinder Stroke	1.75 in
Lift Relief Pressure	2200 psi (152 bar)
Main Relief/High Drive Pressure	3200 psi (221 bar)
Steer Relief Pressure	2100 psi (145 bar)
