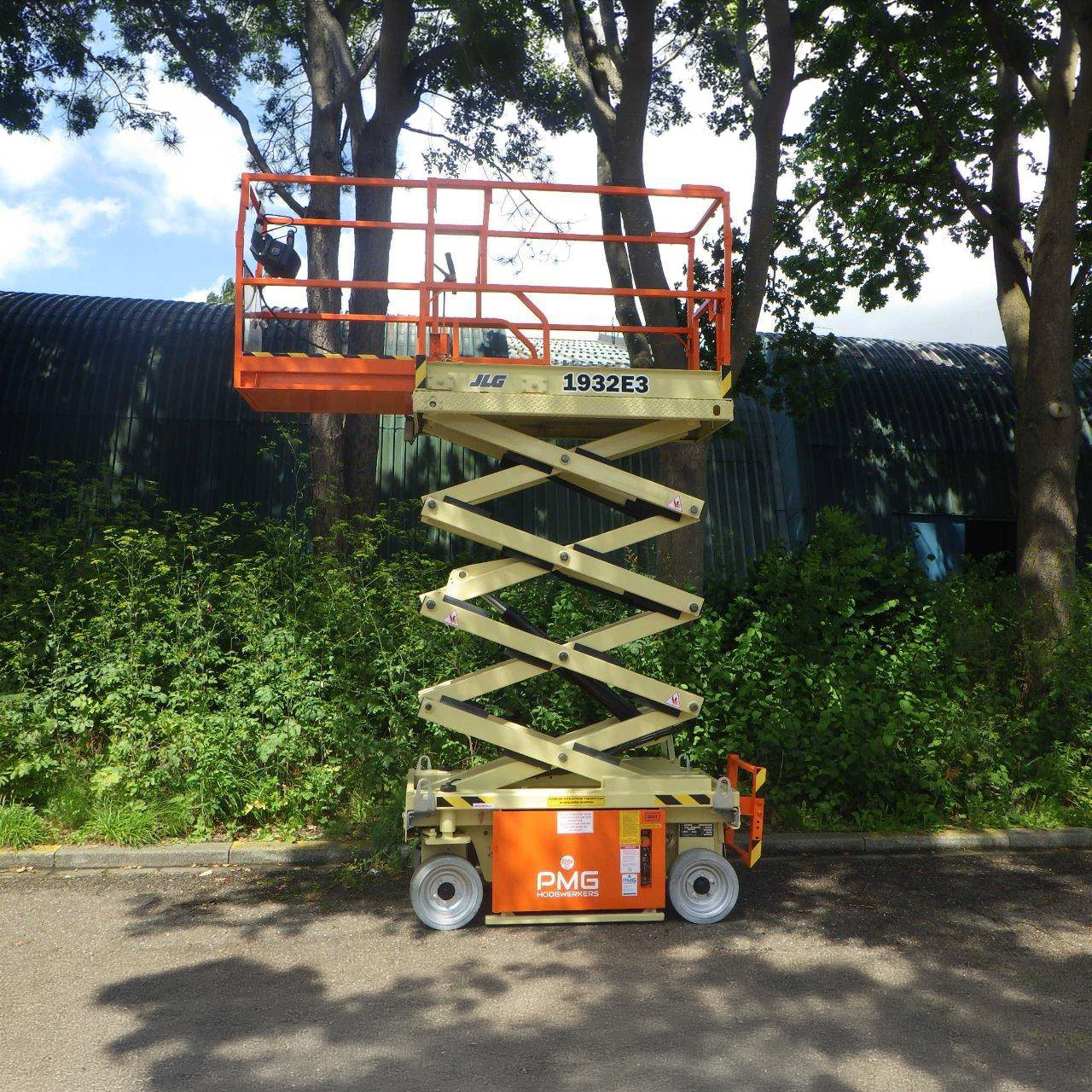

JLG 1932E3 Specs
Quick-reference specifications for the JLG 1932E3 scissor lift, compiled from published specifications.
- Platform Capacity
- 500 lb230 kg
- Gradeability
- 25%
Performance 7 specs
| Platform Capacity | 500 lb (230 kg) |
|---|---|
| Maximum Bearing Pressure | 94 psi (6.6 kg/cm²) |
| Gradeability | 25% |
| Lift Time | 17-22 sec |
| Lower Time | 24-32 sec |
| Inside Turning Radius | 3 in (7.6 cm) |
| Inside Turning Angle | 87° |
Dimensions 6 specs
| Machine Length | 71.25 in (1.8 m) |
|---|---|
| Machine Width | 0.75 in (1.9 cm) |
| Machine Height (Platform Fully Elevated) | 19 ft (5.8 m) |
| Machine Height (Platform Lowered) | 76 in (1.9 m) |
| Ground Clearance | 3.00 in (7.6 cm) |
| Wheelbase | 50.0 in (1.3 m) |
Weight 2 specs
| Machine Weight | 2,900 lb (1,315 kg) |
|---|---|
| Maximum Tire Load | 1,100 lb (499 kg) |
Hydraulics / Fluids 1 spec
| Recommended Hydraulic Oil | Mobilfluid 424, SAE 10W-30 |
|---|
