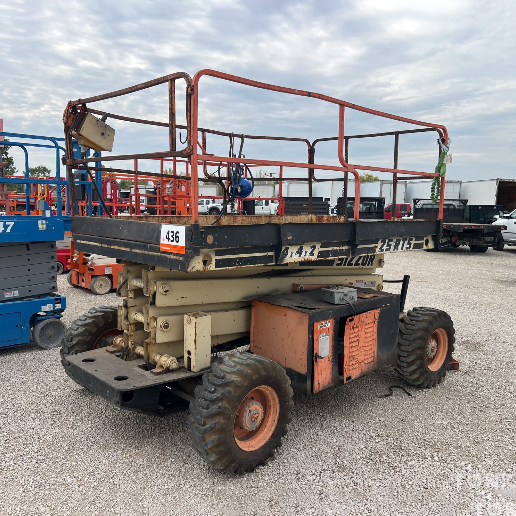

JLG 25RTS Specs
Quick-reference specifications for the JLG 25RTS scissor lift, compiled from published specifications.
- Operating Weight
- 8,500 lb3,856 kg
Performance 5 specs
| Max Platform Height | 25 ft (7.6 m) |
|---|---|
| Max Platform Weight Capacity | 2,000 lb (907 kg) |
| Max Speed | 3.5 mph (5.6 kph) |
| Lift Time | 55 sec |
| Lower Time | 35 sec |
Dimensions 10 specs
| Overall Length | 12 ft 4 in (3.78 m) |
|---|---|
| Overall Width | 7 ft 6 in (2.29 m) |
| Height Without Rails | 6 ft 10 in (2.08 m) |
| Ground Clearance | 12 in (30 cm) |
| Wheelbase | 8 ft (2.44 m) |
| Platform Inner Length | 126 in (320 cm) |
| Platform Inner Width | 71 in (180 cm) |
| Deck Extension | 48 in (122 cm) |
| Height of Rails | 4 ft (1.22 m) |
| Tire Size | 12×16.5 |
Weight 1 spec
| Operating Weight | 8,500 lb (3,856 kg) |
|---|
Power / Engine 3 specs
| Engine Model | VSG-413 |
|---|---|
| Gross Power | 35 hp (26 kW) |
| Fuel Capacity | 15 gal (57 L) |
Hydraulics / Fluids 1 spec
| Hydraulic System Fluid Capacity | 20 gal (76 L) |
|---|
