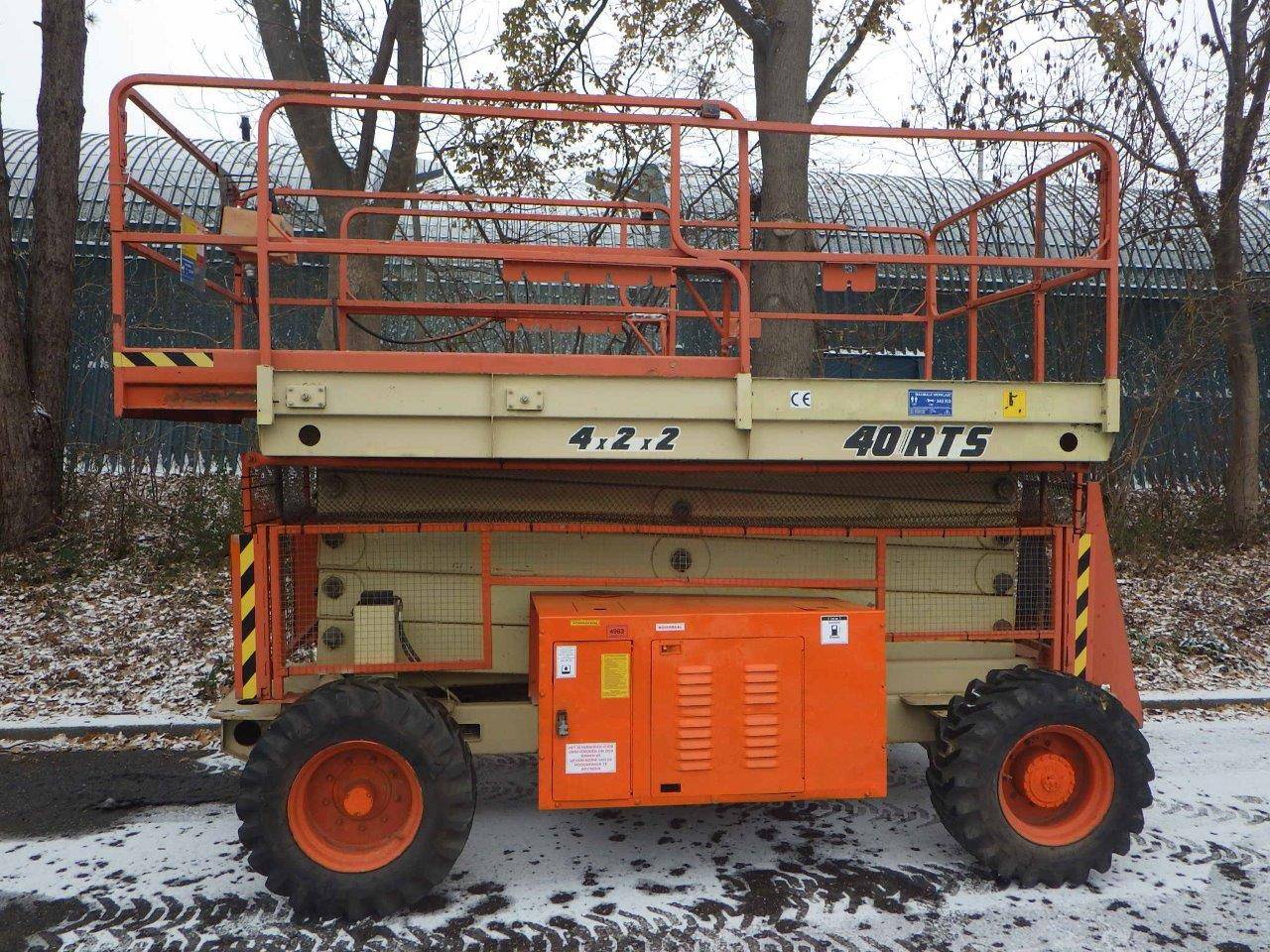

JLG 40RTS Spec Sheet
Quick-reference specifications for the JLG 40RTS. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
A Platform Height Elevated 39ft: 6 in (121m)
G Overall Width 7 ft: 6 in (2.29 m)
Capacity: 1,000 Ibs (454 kg)
H Overall Length 12ft: 8in (3.86 m)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| A Platform Height Elevated 39ft | 6 in (121m) |
|---|---|
| B Platform Height Lowered 5 ft | 8 in (1.73 m) |
| Capacity | 1,000 Ibs (454 kg) |
| Capacity with Optional Deck Extension | 750 Ibs (340 kg) |
| Capacity on Optional Deck Extension | 500 Ibs (227 kg) |

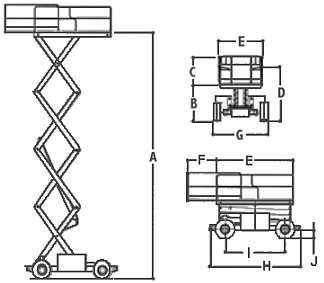

Dimensions
| C Railing Height | 435in (110m) |
|---|---|
| E Platform Dimensions 71 in x 126 in (1.80 x | 3.20 m) |
| G Overall Width 7 ft | 6 in (2.29 m) |
| H Overall Length 12ft | 8in (3.86 m) |
| I Wheelbase | 98 in (2.50 m) |
| J Ground Clearance | 12 in (0.30 m) |
| full height | 4 ft Front Deck Extension |
Weights & Electrical
| Gross Vehicle Weight | 9,200 lbs. (4,175 kg) |
|---|
Powertrain & Systems
| Tire Size | 12×165 |
|---|
