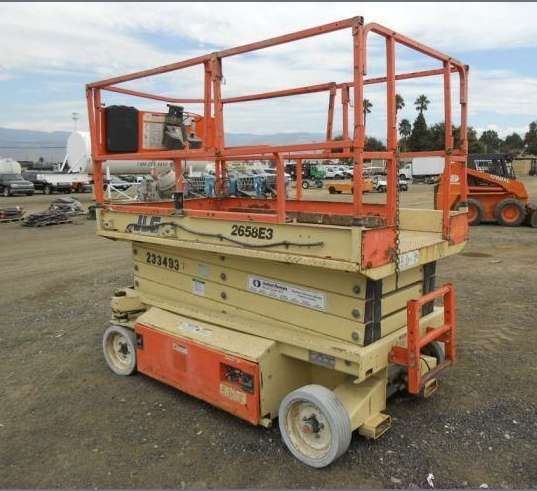

JLG 2658E3 Specs
Quick-reference specifications for the JLG 2658E3 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 1,000 lb450 kg
- Capacity on Deck Extension
- 250 lb113 kg
- A.Platform Height—Elevated
- 26 ft7.92 m
- Gradeability
- 25%
Performance 8 specs
| Platform Capacity | 1,000 lb (450 kg) |
|---|---|
| Capacity on Deck Extension | 250 lb (113 kg) |
| Lift/Lower Speed | 51/33 seconds |
| Drive Speed—Lowered | 2.25 mph (3.62 kph) |
| Drive Speed—Elevated | 0.5 mph (0.8 kph) |
| Gradeability | 25% |
| Turning Radius (Inside) | 16 in (41 cm) |
| Turning Radius (Outside) | 100 in (2.54 m) |
Dimensions 12 specs
| A.Platform Height—Elevated | 26 ft (7.92 m) |
|---|---|
| B.Platform Height—Lowered | 3 ft 9 in (1.14 m) |
| C.Platform Railing Height | 3 ft 7.5 in (1.1 m) |
| D.Overall Height | 7 ft 4 in (2.24 m) |
| Overall Height with Rails Folded | 6 ft 2.5 in (1.89 m) |
| E.Platform Size | 54 x 94 in (1.37 x 2.39 m) |
| Platform Extension | 3 ft (91 cm) |
| G.Overall Width | 4 ft 10 in (1.47 m) |
| H.Overall Length | 8 ft 3 in (2.51 m) |
| Wheelbase | 6 ft 1 in (1.85 m) |
| Ground Clearance | 3.5 in (9.0 cm) |
| Maximum Drive Height | Full Height |
Weight 1 spec
| Gross Vehicle Weight | 4,680 lb (2,123 kg) |
|---|
