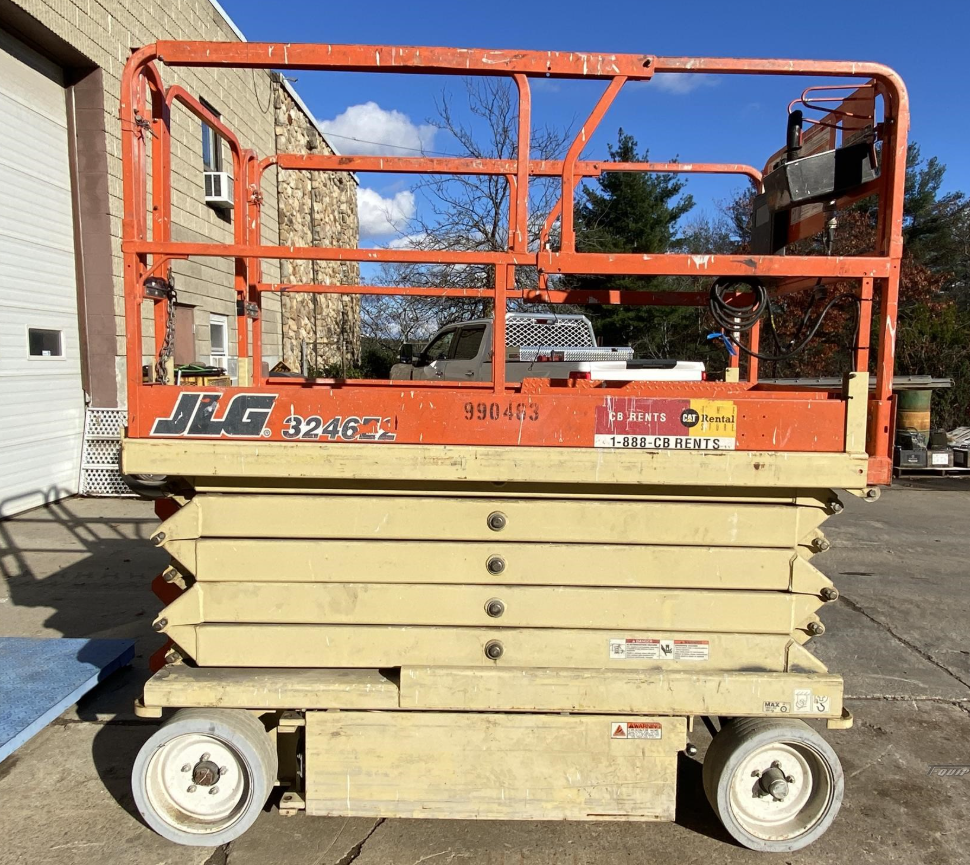

JLG 3246E2 Specs
Quick-reference specifications for the JLG 3246E2 scissor lift, compiled from published specifications.
- Platform Capacity
- 700 lb318 kg
- Capacity on Platform Extension
- 250 lb113 kg
- Platform Height – Elevated
- 32 ft9.75 m
- Platform Height – Lowered
- 4 ft 3 in1.30 m
Performance 9 specs
| Platform Height – Elevated | 32 ft (9.75 m) |
|---|---|
| Platform Height – Lowered | 4 ft 3 in (1.30 m) |
| Maximum Drive Height | 32 ft (9.75 m) |
| Drive Speed – Lowered | 2.0 mph (3.2 kph) |
| Drive Speed – Elevated | 0.5 mph (0.8 kph) |
| Gradeability | 25% |
| Lift/Lower Time | 60/57 sec |
| Platform Capacity | 700 lb (318 kg) |
| Capacity on Platform Extension | 250 lb (113 kg) |
Dimensions 10 specs
| Overall Length | 7 ft 6.5 in (2.30 m) |
|---|---|
| Overall Width | 3 ft 10 in (1.17 m) |
| Overall Height (Rails Folded) | 6 ft 5 in (1.96 m) |
| Platform Size | 45 x 84 in (1.14 x 2.13 m) |
| Platform Railing Height | 3 ft 7.5 in (1.10 m) |
| Platform Extension | 3 ft (91 cm) |
| Wheelbase | 5 ft 8.5 in (1.74 m) |
| Ground Clearance | 3.0 in (7.62 cm) |
| Turning Radius (Inside) | 45 in (1.14 m) |
| Turning Radius (Outside) | 115 in (2.92 m) |
Weight 1 spec
| Gross Vehicle Weight | 6,100 lb (2,767 kg) |
|---|
Power / Engine 2 specs
| Batteries | 4 x 6 V 245 amp-hr |
|---|---|
| Electric Motor | 4.5 hp (3.4 kW) |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir | 4 gal (15.2 L) |
|---|
