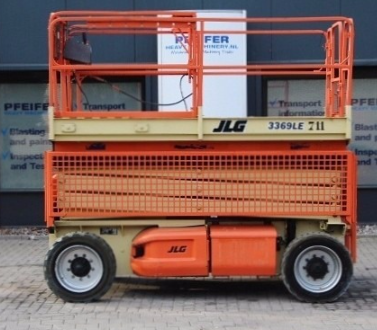

JLG 3369LE Spec Sheet
Quick-reference specifications for the JLG 3369LE. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
F. Overall Width: 1.75 m
A. Stowed Height: 2.74 m
G. Overall Length: 3.07 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Dimensions
| A. Stowed Height | 2.74 m |
|---|---|
| B. Platform Railing Height | 1.10 m |
| C. Stowed Height (Rails Folded) | 1.98 m |
| D. Platform Size (W X L) 1.65 m x | 2.92 m |
| F. Overall Width | 1.75 m |
| G. Overall Length | 3.07 m |
| H. Wheelbase | 2.32 m |
| I. Ground Clearance | 0.20 m |
