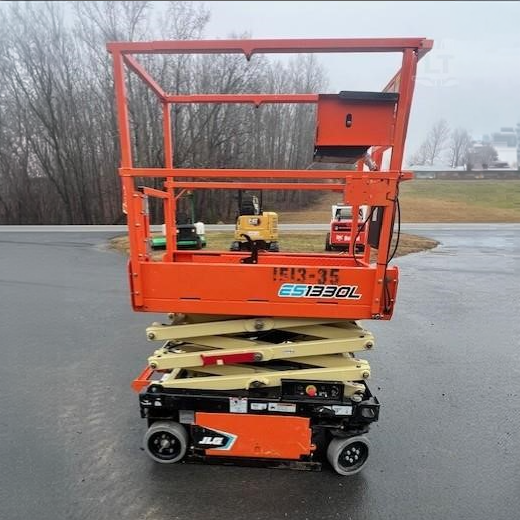

JLG ES1330L Spec Sheet
Quick-reference specifications for the JLG ES1330L. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
F. Overall Width: 30.0 in.
Capacity on Platform Extension: 250 lb
G. Overall Length: 56.2 in
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Capacity on Platform Extension | 250 lb |
|---|---|
| Gradeability | 25% |
| Turning Radius (Outside) | 55 in |
Dimensions
| B. Platform Railing Height | 43.3 in. |
|---|---|
| D. Platform Size 24.4 x | 49.2 in. |
| F. Overall Width | 30.0 in. |
| G. Overall Length | 56.2 in |
| H. Wheelbase | 42.3 in. |
| I. Ground Clearance | 2.4 in. |
Weights & Electrical
| Batteries 2 x 12V | 105 amp-hr |
|---|---|
| Charger | 27 Amp (Universal Algorithm) |
Powertrain & Systems
| Drive | 24V Electric |
|---|---|
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| ES1530L | 116 psi |
|---|
