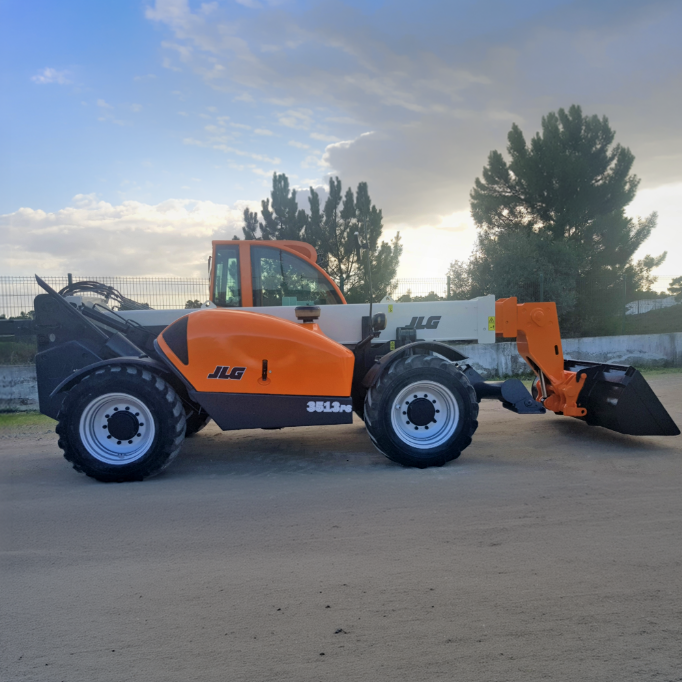

JLG 3513PS Specs
Quick-reference specifications for the JLG 3513PS telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Capacity
- 3,500 kg
- Capacity at Maximum Height
- 1,000 kg
- Maximum Forward Reach
- 9.2 m
Performance 11 specs
| Powershift | 4F – 3R |
|---|---|
| Tyres Front Standard | 405/70-24 |
| Tyres Rear Standard | 405/70-24 |
| Steering Type | 2W/4W/Crab |
| System Pressure | 250 Bar |
| Load Centre | 0.6 m |
| Breakout Force | 70 kN |
| Maximum Lift Capacity | 3,500 kg |
| Maximum Forward Reach | 9.2 m |
| Capacity at Maximum Height | 1,000 kg |
| Capacity at Maximum Reach | 150 kg |
Dimensions 8 specs
| Length (Less Forks) | 6.0 m |
|---|---|
| Overall Width | 2.38 m |
| Height | 2.45 m |
| Wheelbase | 2.85 m |
| Ground Clearance | 0.42 m |
| Stabiliser Spread | 2.56 m |
| Turn Radius Over Tyres | 3.8 m |
| Turn Radius Over Forks | 5.35 m |
Hydraulics / Fluids 1 spec
| Fuel Tank | 140 Ltr |
|---|
