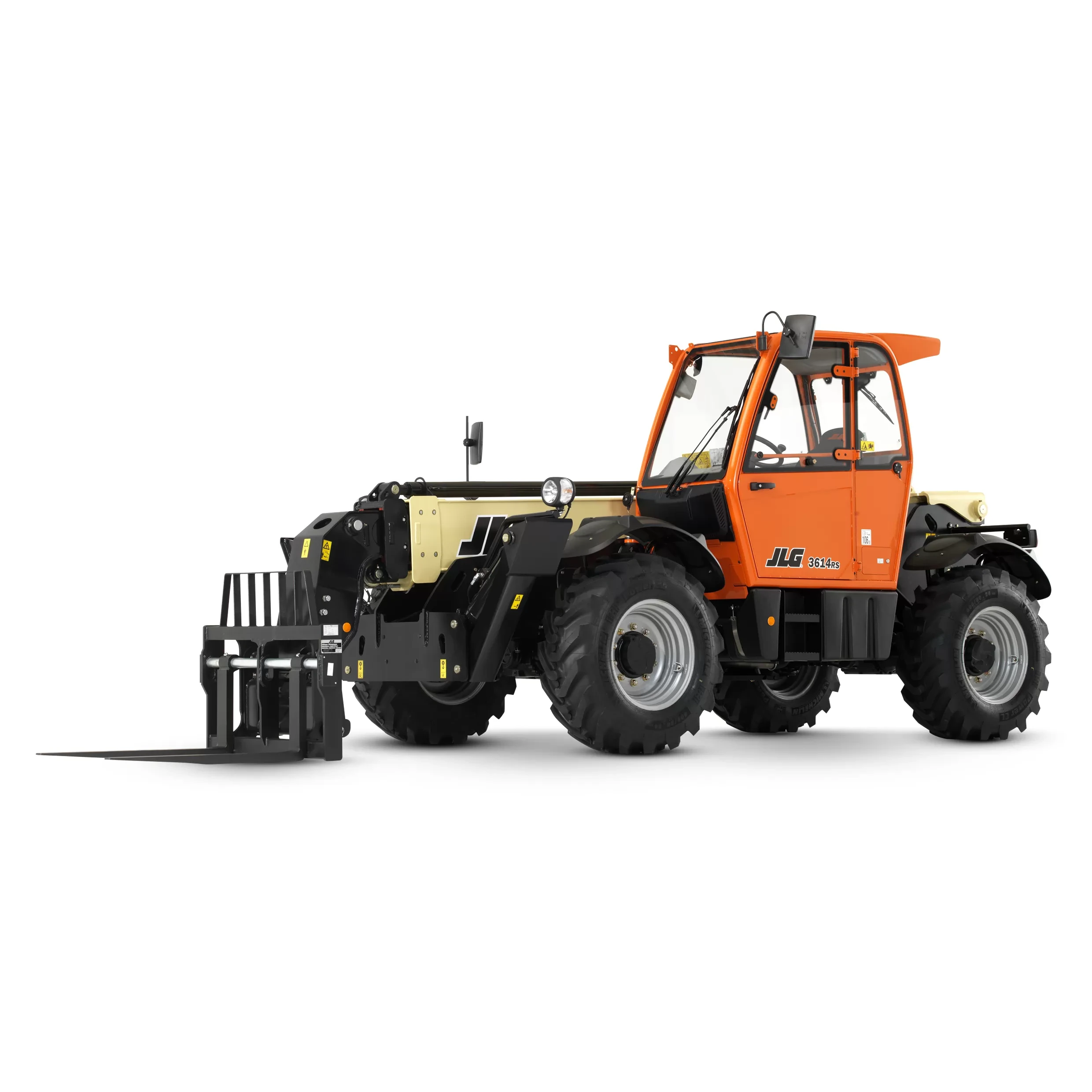

JLG 3614RS Spec Sheet
Quick-reference specifications for the JLG 3614RS. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 3,600 kg
Maximum Lift Height: 14 m
Operating Weight: 9,800 kg
Capacity: 100 L
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 3,600 kg |
|---|---|
| Maximum Lift Height | 14 m |
| Frame Leveling | 10˚ |
| Top Travel Speed | 25.0 km/h |
| Outside Turning Radius (Over Tires) | 3.85 m |
| Capacity | 100 L |
Dimensions
| Load at Max Height | 3,000 kg |
|---|
Weights & Electrical
| Load at Max Reach | 950 kg |
|---|---|
| Retracted | 14 sec |
| Operating Weight | 9,800 kg |
| Displacement | 3.6 L |
| notification. This machine meets or exceeds applicable OSHA Regulations in | 29 CFR |
Powertrain & Systems
| Engine 74.4 kW | 3-Speed |
|---|---|
| Standard Engine Gross Power | 74.4 kW |
| Steering | 4-Wheel |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 150 L |
|---|
