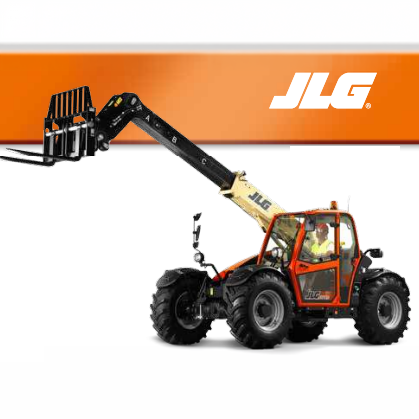

JLG 3706PS Specs

Quick-reference specifications for the JLG 3706PS telehandler, compiled from published specifications.

Capacity at Max Height: 5511.6 lb2500 kg
Maximum Lift Height: 20 ft6.1 m
Operating Weight (no attachment): 18,077.9 lb8200 kg

Performance 14 specs

Rated Load Capacity	8157 lb (3700 kg)
Maximum Lift Height	20 ft (6.1 m)
Capacity at Max Height	5511.6 lb (2500 kg)
Capacity at Max Reach	3306.6 lb (1500 kg)
Maximum Horizontal Reach	10.2 ft (3.11 m)
Lift Speed – Up (boom retracted)	5.0 sec
Lift Speed – Down (boom retracted)	4.0 sec
Boom Speed – Extended	4.5 sec
Boom Speed – Retracted	5.0 sec
Top Travel Speed (standard engine)	19.88 mph (32 km/h)
Outside Turning Radius (over tyres)	12 ft 2 in (3.70 m)
Frame Leveling	10 degrees
Drawbar Pull (loaded)	15,575 lbf (69.3 kN)
Towing Capacity	15,580 lb (7067 kg)

Dimensions 8 specs

Transport Length (to front tires)	13 ft 11 in (4253 mm)
Overall Length (with forks/holder plate)	15 ft 2 in (4621 mm)
Transport Width	7 ft 9 in (2.38 m)
Transport Height	7 ft 9 in (2.38 m)
Inside Cab Width	2 ft 11 in (880 mm)
Wheelbase	9 ft 9 in (2.98 m)
Front Track Width	6 ft 6 in (1.99 m)
Ground Clearance	1 ft 5 in (0.43 m)

Weight 1 spec

Operating Weight (no attachment)	18,077.9 lb (8200 kg)

Power / Engine 12 specs

Engine Make and Model	Deutz TCD 3.6 L4
Number of Cylinders	4
Displacement	3.6 L
Standard Engine Gross Power	99.7 hp (74.4 kW)
Optional Engine Gross Power	120 hp (90.0 kW)
Maximum Torque (standard engine)	420 Nm @ 1600 RPM
Maximum Torque (optional engine)	480 Nm @ 1600 RPM
Fuel Tank Capacity	39.6 gal (150 L)
Drive Type	4-wheel drive
Standard Tire Type	Mitas 15.5/80-24 16ply
Coolant Capacity	6.6 gal (25 L)
Engine Oil Capacity	2.1 gal (8 L)

Hydraulics / Fluids 5 specs

Hydraulic Reservoir Capacity	23.8 gal (90 L)
Maximum Pump Flow	150 L/min (39.6 gal/min)
Auxiliary Hydraulic Flow (intermittent)	80 L/min
Hydraulic System Pressure	3625.9 psi (250 bar)
Hydraulic System Chassis Rotation	149 degrees
