Telehandler · JLG

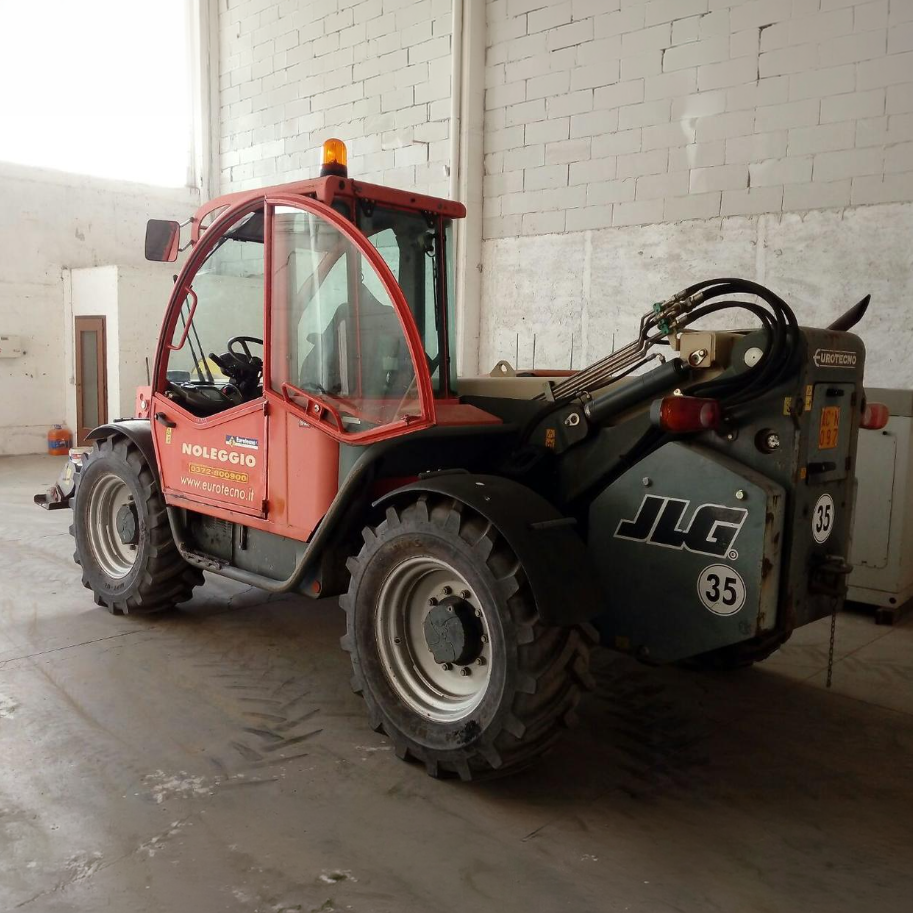

JLG 3513 Specs
Quick-reference specifications for the JLG 3513 telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Capacity
- 3,500 kg
- Capacity at full height
- 3,500 kg
- Maximum Forward Reach
- 9.20 m
Performance 8 specs
| Load Sensing Piston Type 132 L/min | 160 L Reservoir |
|---|---|
| Maximum Lift Capacity | 3,500 kg |
| Capacity at full height | 3,500 kg |
| Maximum Forward Reach | 9.20 m |
| Capacity at Maximum Forward Reach | 1,000 kg |
| Reach at Maximum Height | 1.85 m |
| Towing Capacity | 5,000 kg |
| Steering | 4WS/Front Steer/Crab Steer |
Dimensions 1 spec
| Lifting Height | 13.00 m |
|---|
