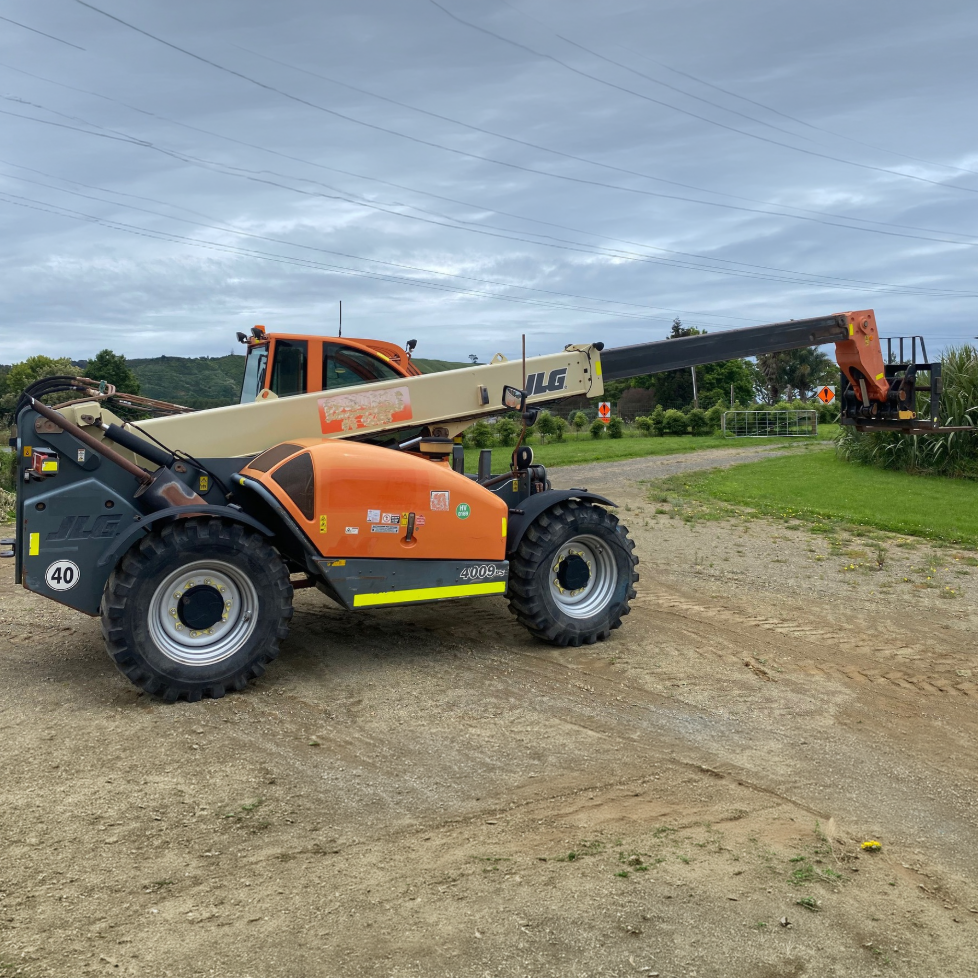

JLG 4009PS Specs
Quick-reference specifications for the JLG 4009PS telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Capacity
- 4,000 kg
- Capacity at Full Height
- 4,000 kg
- Maximum Lift Height
- 9.00 m
- Maximum Forward Reach
- 5.20 m
Performance 12 specs
| Maximum Lift Capacity | 4,000 kg |
|---|---|
| Maximum Forward Reach | 5.20 m |
| Lift Capacity at Full Height | 4,000 kg |
| Lift Capacity at Maximum Reach | 1,250 kg |
| Tyres Front Standard | 405/70-24 |
| Tyres Rear Standard | 405/70-24 |
| Steering Type | 2W/4W/Crab |
| System Pressure | 250 Bar |
| Load Centre | 0.60 m |
| Breakout Force | 70 kN |
| Capacity at Full Height | 4,000 kg |
| Capacity at Maximum Reach | 1,250 kg |
Dimensions 9 specs
| Maximum Lift Height | 9.00 m |
|---|---|
| Pneumatic Tyre Type | MPT04 Industrial |
| Length to Front of Carriage | 5.62 m |
| Overall Width | 2.38 m |
| Height Over Cab | 2.45 m |
| Wheelbase | 2.85 m |
| Ground Clearance | 0.42 m |
| Turn Radius Over Tyres | 3.80 m |
| Turn Radius Over Forks | 5.02 m |
Weight 1 spec
| Weight | 9,200 kg |
|---|
Power / Engine 2 specs
| Drive | 4W |
|---|---|
| Powershift | 4F/3R |
Hydraulics / Fluids 1 spec
| Fuel Tank | 140 Ltr |
|---|
