General Aerial Work Platform · JLG

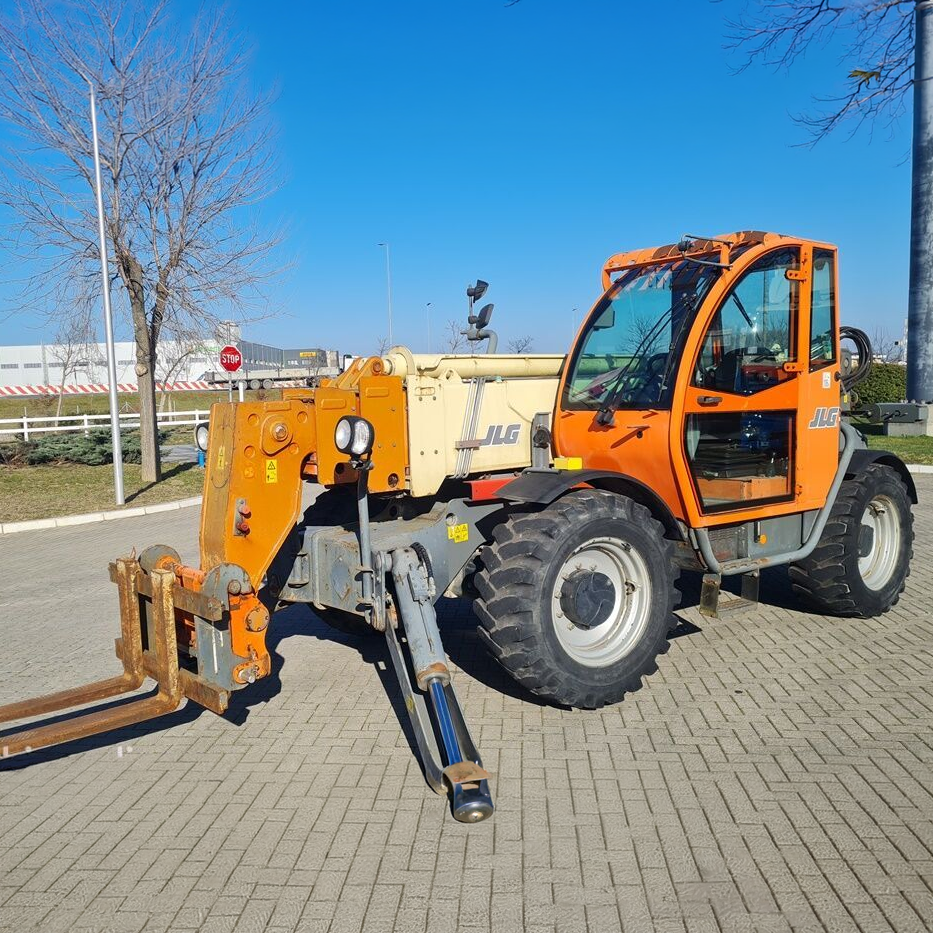

JLG 4017PS Specs
Quick-reference specifications for the JLG 4017PS telehandler, taken from the manufacturer’s spec sheet.
- Rated capacity
- 4,000 kg
- Capacity at max height (stabilisers up)
- 1000 kg
- Maximum lift height (stabilisers up)
- 15.2 m
- Operating weight
- 12310 kg
Performance 12 specs
| Rated capacity | 4,000 kg |
|---|---|
| Capacity at max height (stabilisers up) | 1000 kg |
| Capacity at max. reach (stabilisers down) | 500 kg |
| Frame leveling | 10° |
| Lift speed (boom retracted) – Down | 13.0 sec |
| Boom speed (extended/retracted) – Extended | 20 sec |
| Boom speed (extended/retracted) – Retracted | 25 sec |
| Top travel speed | 32.0 km/h |
| Drawbar pull (loaded) | 69.3 kN |
| Outside turning radius (over tyres) | 3.92 m |
| Fixed Platform | 1.8 m |
| Extendable platform | 4.5 m |
Dimensions 3 specs
| Maximum lift height (stabilisers up) | 15.2 m |
|---|---|
| Maximum lift height (stabilisers down) | 17.3 m |
| Stabilisers down | 3070 mm |
Weight 1 spec
| Operating weight | 12310 kg |
|---|
Power / Engine 3 specs
| Displacement | 3.6 L |
|---|---|
| Standard engine gross power | 74.4 kW |
| Maximum torque at 1600 RPM | 420 Nm |
Hydraulics / Fluids 4 specs
| Hydraulic System-Implement – Capacity | 90 L |
|---|---|
| Maximum pump flow | 150 L/min |
| Fuel Tank Capacity | 150 L |
| Hydraulic quick switch coupler | 500 L cap.-1100 kg |
