Specs that keep your equipment moving.Electric Boom Lift · JLG

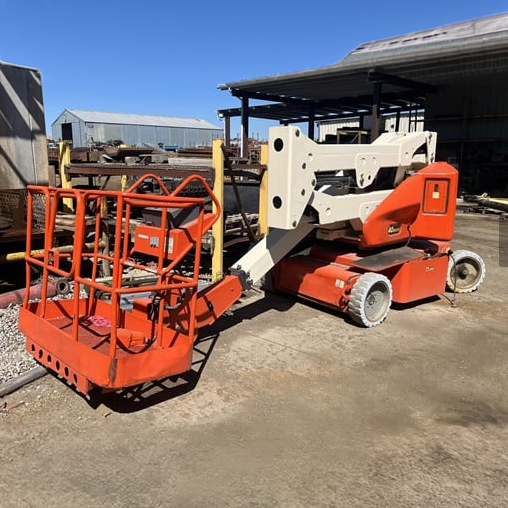

JLG 40e Specs
Quick-reference specifications for the JLG 40e boom lift, compiled from published specifications.
- Platform Capacity
- 500 lb227 kg
- Working Height
- 46.3 ft14.1 m
- Operating Weight
- 10700 lb4,853 kg
Performance 4 specs
| Working Height | 46.3 ft (14.1 m) |
|---|---|
| Horizontal Reach | 20.5 ft (6.25 m) |
| Platform Capacity | 500 lb (227 kg) |
| Travel Speed | 4.0 km/h |
Dimensions 5 specs
| Platform Length | 2.17 ft (0.66 m) |
|---|---|
| Platform Width | 4.0 ft (1.22 m) |
| Machine Length | 17 ft 7 in (5.36 m) |
| Machine Width | 5 ft 9 in (1.75 m) |
| Machine Height | 6 ft 7 in (2.0 m) |
Weight 1 spec
| Operating Weight | 10700 lb (4,853 kg) |
|---|
Power / Engine 1 spec
| Power Source | 48VDC Electric |
|---|
