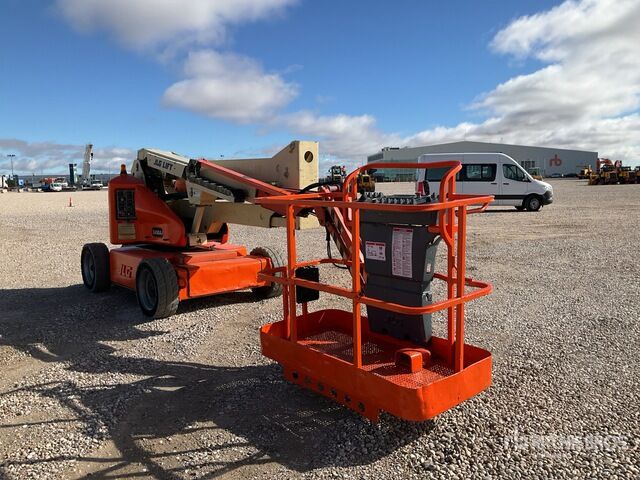

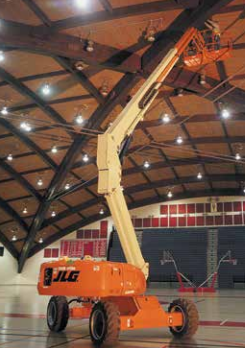

JLG E600 Specs
Quick-reference specifications for the JLG E600 boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 60 ft 3 in18.36 m
- Weight
- 15,200 lb6,894 kg
- Gradeability 2WD
- 30%
Performance 10 specs
| Horizontal Outreach | 43 ft 3 in (13.18 m) |
|---|---|
| Swing | 400° Non-Continuous |
| Platform Capacity | 500 lb (227 kg) |
| Platform Rotator | 180° Hydraulic |
| Drive Speed | 3.0 mph (4.8 km/h) |
| Gradeability 2WD | 30% |
| Gradeability 4WD | 45% |
| Axle Oscillation | 8 in (20 cm) |
| Turning Radius – Inside | 4 ft (1.22 m) |
| Turning Radius – Outside | 15 ft 4 in (4.67 m) |
Dimensions 5 specs
| Platform Height | 60 ft 3 in (18.36 m) |
|---|---|
| Height (stowed) | 8 ft 4 in (2.54 m) |
| Width | 9 ft (2.74 m) |
| Length (stowed) | 30 ft 9 in (9.37 m) |
| Ground Clearance | 12 in (30 cm) |
Weight 2 specs
| Weight | 15,200 lb (6,894 kg) |
|---|---|
| Max. Ground Bearing Pressure | 52 psi (3.7 kg/cm2) |
Power / Engine 2 specs
| Batteries | 8 x 6 V, 145 amp-hr |
|---|---|
| Drive Motors | Dual Electric Traction |
Hydraulics / Fluids 1 spec
| Hydraulic System – Capacity | 15 gal (56.78 L) |
|---|
