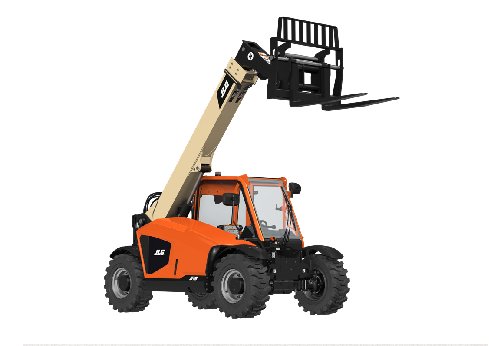

JLG 519 Spec Sheet
Quick-reference specifications for the JLG 519. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity 5,500-lb /: 2,495-kg
Maximum Lift Height 18-ft 7-in /: 5.7-m
Maximum Forward Reach 10-ft 10-in /: 3.3-m
Operating Weight 10,400-lb /: 4,717-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity 5,500-lb / | 2,495-kg |
|---|---|
| Maximum Lift Height 18-ft 7-in / | 5.7-m |
| Maximum Forward Reach 10-ft 10-in / | 3.3-m |
| Lift Speed (Boom Retracted) Up | 7.2 sec |
| Lift Speed (Boom Retracted) Down | 5.6 sec |
| Boom Speed Extended | 7.2 sec |
| Boom Speed Retracted | 5.0 sec |
| Top Travel Speed (4-Speed) 15 mph / | 24.1 km/h |
| Drawbar Pull (Loaded) 10,300-lb-ft / | 46.7-kN |
| Outside Turning Radius 126-in / | 3.2-m |
Dimensions
| Load at Max Height 4,400-lb / | 1,996-kg |
|---|---|
| A. Machine Length 151.5-in / | 3850-mm |
| B. Machine Width 72-in / | 1830-mm |
| C. Wheelbase 92.5-in / | 2350-mm |
| D. Machine Height 76-in / | 1928-mm |
| E. Ground Clearance 10.8-in / | 274-mm |
Weights & Electrical
| Load at Max Reach 1,900-lb / | 862-kg |
|---|---|
| Operating Weight 10,400-lb / | 4,717-kg |
| Displacement 134 cu in / | 2.2 L |
Powertrain & Systems
| Gross Power Basic 60 hp / | 44.5 kW |
|---|---|
| two (2) full years or | 2,000 hours on the drivetrain and cover all specified major structural components for five (5) years. Due to |
Hydraulics & Capacities
| Fuel Tank Capacity 18.5 gal / | 69.3 L |
|---|---|
| Capacity 18 gal / | 68 L |
