5K Telehandler · JLG

JLG G5-18A Specs

Quick-reference specifications for the JLG G5-18A telehandler, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

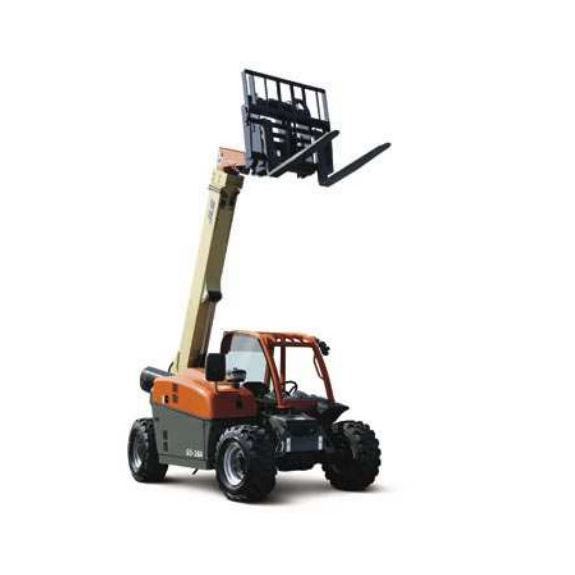

JLG G5-18A
Capacity฀at฀Maximum฀Lift฀Height฀
4,400฀lb฀1,196฀kg

Performance 10 specs

Maximum฀Forward฀Reach฀ 10฀ft฀10฀in.฀ (3.3฀m)
Capacity฀at฀Maximum฀Lift฀Height฀ 4,400฀lb฀ (1,196฀kg)
Capacity฀at฀Maximum฀Forward฀Reach฀ 1,850฀lb฀ (839฀kg)
Lift฀Speed฀(boom฀retracted) Up:฀6.2฀sec
Travel฀Speed฀Forward 17฀mph฀ (27.4฀kmph)
Drawbar฀Pull ฀ 8,700฀lb฀ (3,946฀kg)
Breakout฀Force ฀ 7,650฀lb฀ (3,470฀kg)
Standard฀Carriage 48฀in.฀ (1.2฀m)
Side฀Tilt฀Carriage 48฀in.฀ (1.2฀m)
Rated฀Speed฀ ฀2,200฀rpm

Dimensions 7 specs

Maximum฀Lift฀Height฀ 18฀ft฀ (5.5฀m)
A.฀Length฀(less฀forks)฀ 144.2฀in.฀ (3.7฀m)
B.฀Width฀ 71.5฀in.฀ (1.8฀m)
C.฀Height฀ 75.6฀in.฀ (1.9฀m)
D.฀Wheelbase฀ 90.0฀in.฀ (2.3฀m)
E.฀Ground฀Clearance฀ 10.8฀in.฀ (274฀mm)
F.฀ Outside฀Turning฀Radius฀ 126.0฀in.฀ (3.2฀m)

Power / Engine 3 specs

Engine – Make฀and฀Model฀ Perkins฀1104D
No.฀of฀Cylinders฀ ฀4
Displacement฀ ฀268.4฀cu฀in.฀ (4.4฀L)

Hydraulics / Fluids 1 spec

Attachment฀Tilt 125฀degrees
