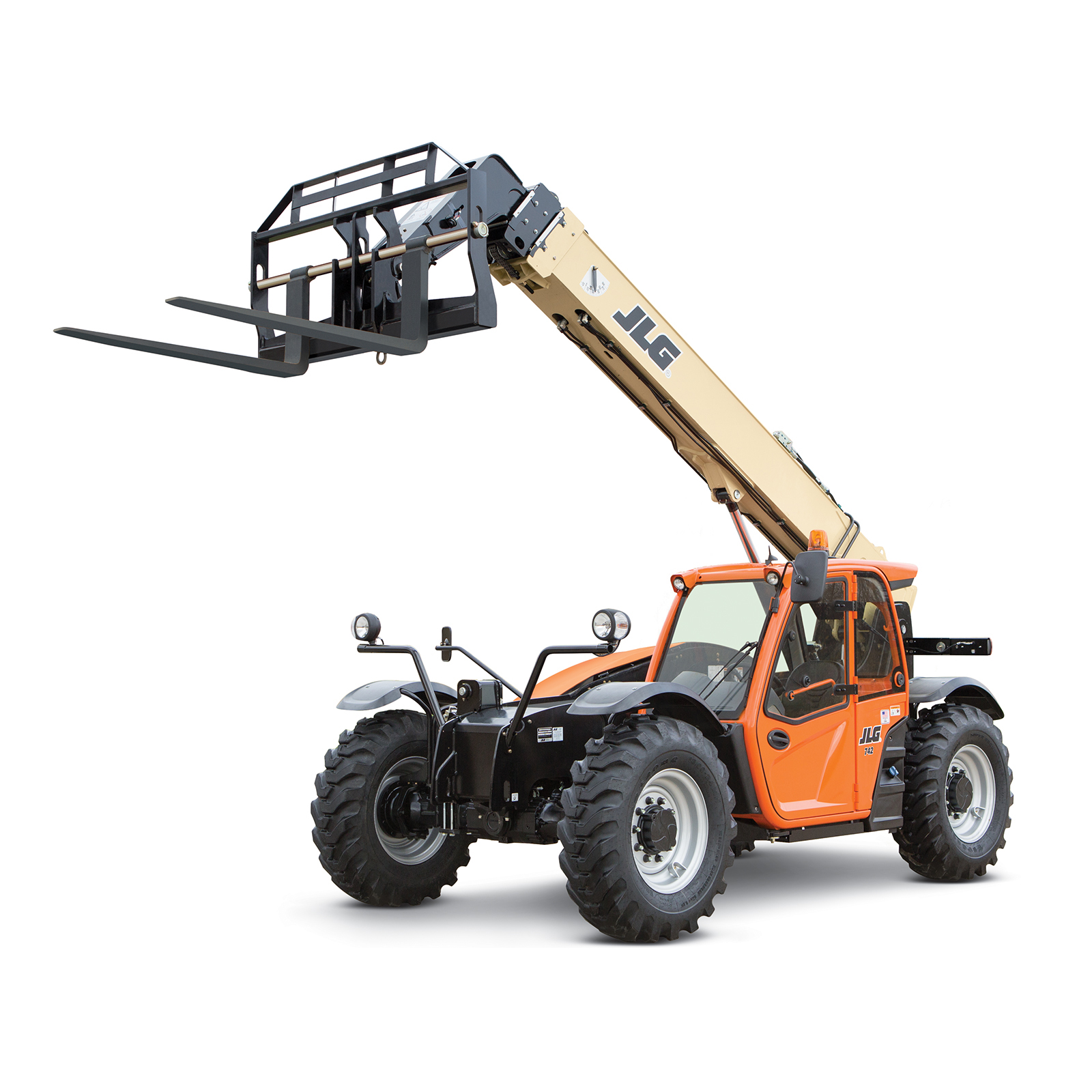

JLG 742 Spec Sheet
Quick-reference specifications for the JLG 742. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity 7,000-lb /: 3,175-kg
Maximum Lift Height 42-ft /: 12.8-m
Maximum Forward Reach 29-ft 1-in /: 8.86-m
Operating Weight 21,476-lb /: 9,741-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity 7,000-lb / | 3,175-kg |
|---|---|
| Maximum Lift Height 42-ft / | 12.8-m |
| Maximum Forward Reach 29-ft 1-in / | 8.86-m |
| Frame Leveling | 10 Degrees |
| Lift Speed (boom retracted) Up | 11.3 seconds |
| Lift Speed (boom retracted) Down | 9 seconds |
| Boom Speed Extended | 11 seconds |
| Boom Speed Retracted | 11.5 seconds |
| Top Travel Speed (4-Speed) 18 mph / | 29 kph |
| Drawbar Pull (loaded) 19,000-lb / | 84.5-kN |
| Outside Turning Radius 12-ft / | 3.66-m |
| Fork Mounted Work Platform 8-ft, | 1,000-lb Capacity |
Dimensions
| Load at Max Height 6,000-lb / | 2,722-kg |
|---|
Weights & Electrical
| Load at Max Reach 1,000-lb / | 454-kg |
|---|---|
| Operating Weight 21,476-lb / | 9,741-kg |
| Displacement 232-cu in / | 3.8 L |
Powertrain & Systems
| Gross Power Basic 74 hp / | 55 kW |
|---|---|
| Transmission Powershift 4-speed forward and | 3-speed reverse. |
| Tilt on joystick Steering | 4-Wheel |
| Power steering. Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front. |
| full years or | 2,000 hours on the drivetrain and cover all specified major |
Hydraulics & Capacities
| Fuel Tank Capacity 38.3 gal / | 145 L |
|---|---|
| Capacity 40 gal / | 151.5 L |
| Max. auxiliary flow to the boom head | 25 gpm/95 lpm. Load sense piston pump. Auxiliary |
