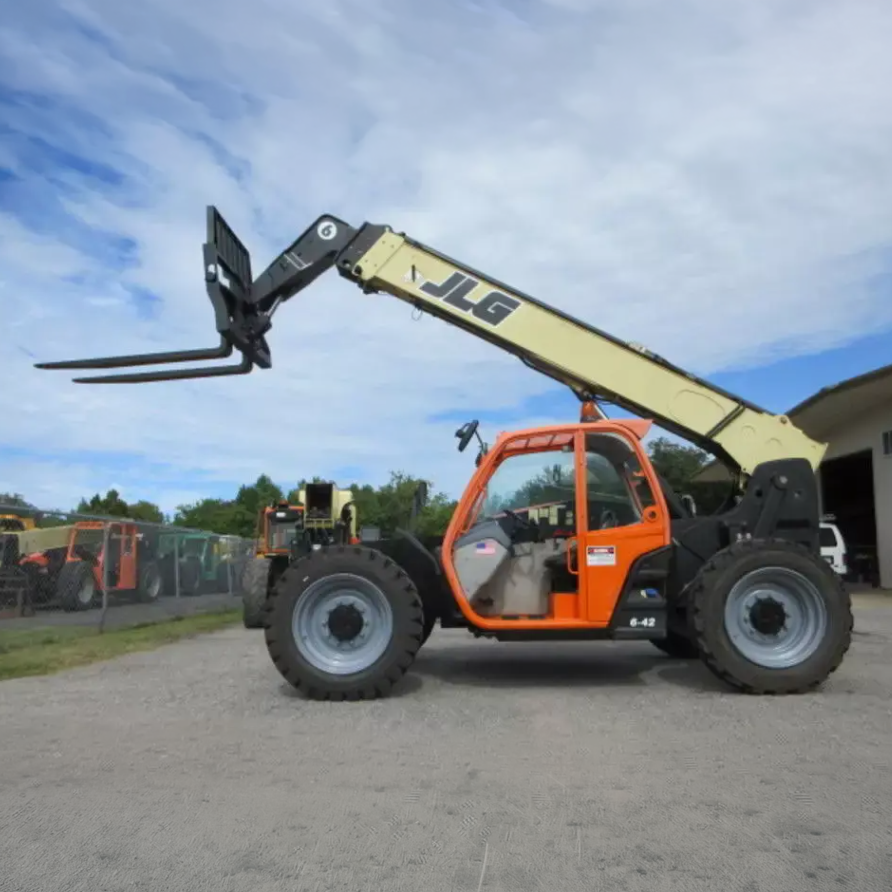

JLG 642 Spec Sheet
Quick-reference specifications for the JLG 642. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 6,600 lb
Maximum Lift Height: 42 ft
Maximum Forward Reach: 29 ft
Operating Weight: 22,218 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 6,600 lb |
|---|---|
| Maximum Lift Height | 42 ft |
| Maximum Forward Reach | 29 ft |
| Frame Leveling | 10° |
| Top Travel Speed (4-Speed) | 21 mph |
| Drawbar Pull (loaded) | 20,25.5 lb |
| Outside Turning Radius | 12 ft |
| Truss Boom 3 ft (winch), 4,000 lb Capacity 0.9 m, | 1,814 kg Capacity |
| Fork Mounted Work Platform 8 ft, | 1,000 lb Capacity |
| Material Handling Arm | 4,000 lb Capacity |
Dimensions
| Load at Max Height | 6,000 lb |
|---|
Weights & Electrical
| Load at Max Reach | 1,000 lb |
|---|---|
| Retracted | 10 sec |
| Operating Weight | 22,218 lb |
| Displacement | 232 cu in. |
| notification. This machine meets or exceeds applicable OSHA Regulations in | 29 CFR |
Powertrain & Systems
| Gross Power Basic | 110 hp |
|---|---|
| Transmission Powershift 4-speed forward and | 3-speed reverse. |
| Power steering with manual backup. Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front. |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 38.8 gal |
|---|---|
| Capacity | 40 gal |
