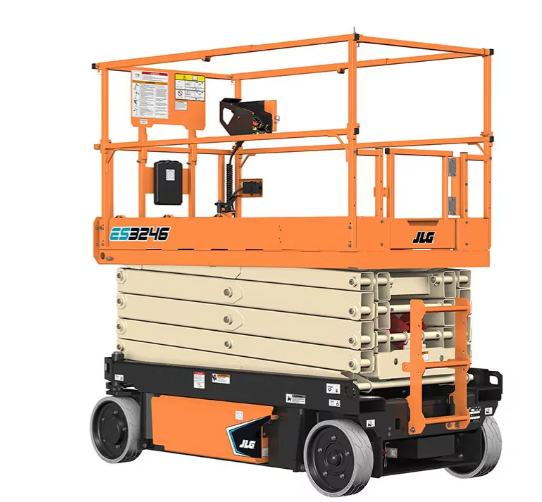

JLG ES3246 Specs
Quick-reference specifications for the JLG ES3246 scissor lift, taken from the manufacturer’s spec sheet.
- Capacity on Platform Extension
- 265 lb120 kg
- Platform Height (Elevated)
- 32 ft9.8 m
- Platform Height
- 32 ft9.8 m
- Gradeability
- 25%
Performance 8 specs
| Capacity on Platform Extension | 265 lb (120 kg) |
|---|---|
| Lift / Lower Time (No Load) | 50/44 seconds |
| Lift / Lower Time (Rated Load) | 58/37 seconds |
| Drive Speed (Lowered) | 3 mph (4.8 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Gradeability | 25% |
| Max Tilt Rating (Fore and Aft) | 3.5 Degrees |
| Drive | 24 V DC |
Dimensions 13 specs
| Platform Height | 32 ft (9.8 m) |
|---|---|
| Platform Height (Elevated) | 32 ft (9.8 m) |
| Machine Width | 46 in (117 cm) |
| Machine Length | 94.3 in (2.4 m) |
| Wheelbase | 74 in (1.9 m) |
| Ground Clearance | 3.9 in (9.8 cm) |
| Platform Height (Lowered) | 50.9 in (1.3 m) |
| Platform Railing Height | 44.6 in (1.13 m) |
| Machine Height (Rails Raised) | 96.3 in (2.5 m) |
| Machine Height (Rails Lowered) | 77.6 in (2.0 m) |
| Platform Width | 41.6 in (1.1 m) |
| Platform Length | 84 in (2.1 m) |
| Platform Extension | 36 in (91 cm) |
Weight 1 spec
| Max. Ground Bearing Pressure | 140 psi (9.8 kg/cm²) |
|---|
Power / Engine 2 specs
| Batteries | 4 x 6 V 220 amp-hr |
|---|---|
| Charger | 27 Amp |
Hydraulics / Fluids 1 spec
| Stowed Drive Speed | 3 mph (4.8 km/h) |
|---|
