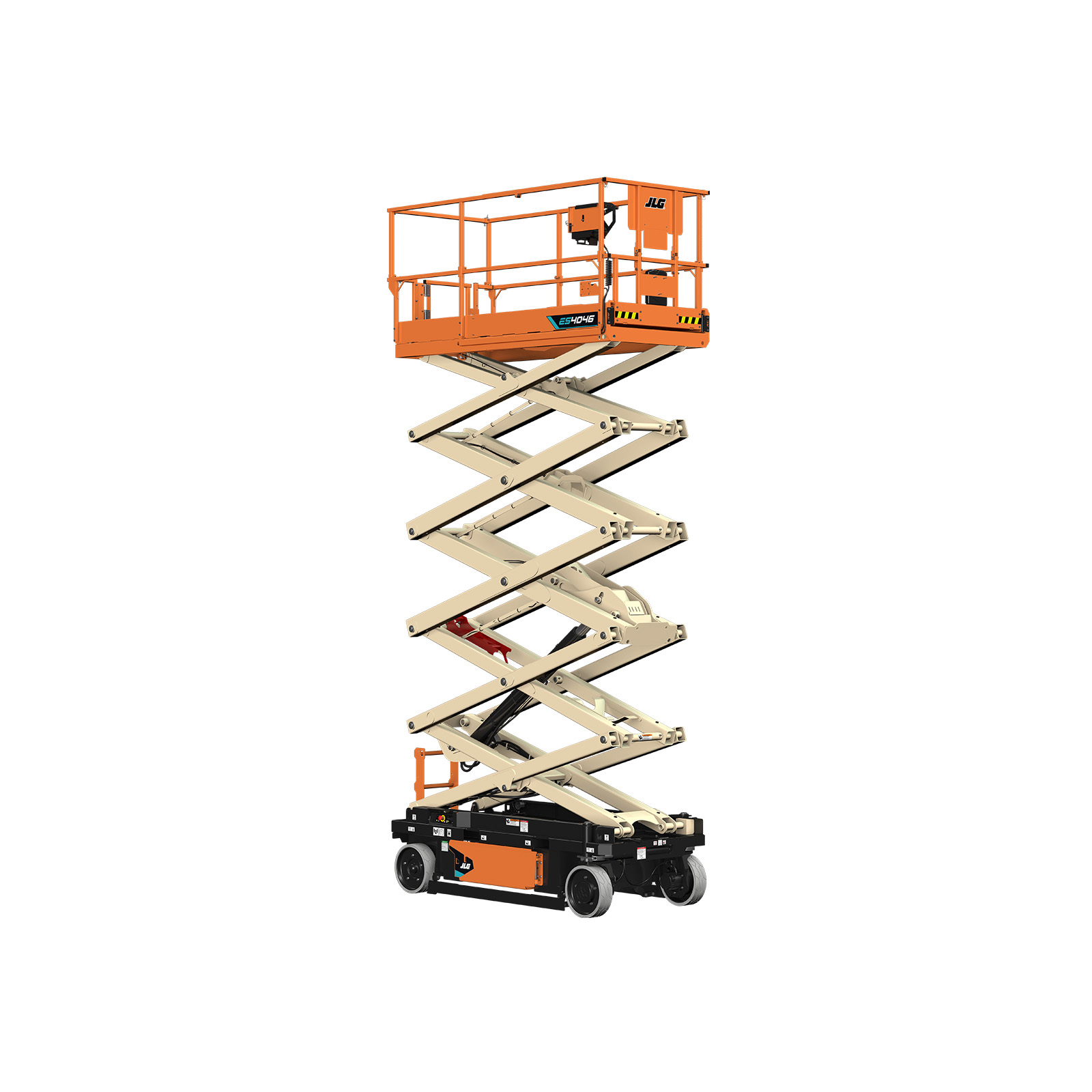

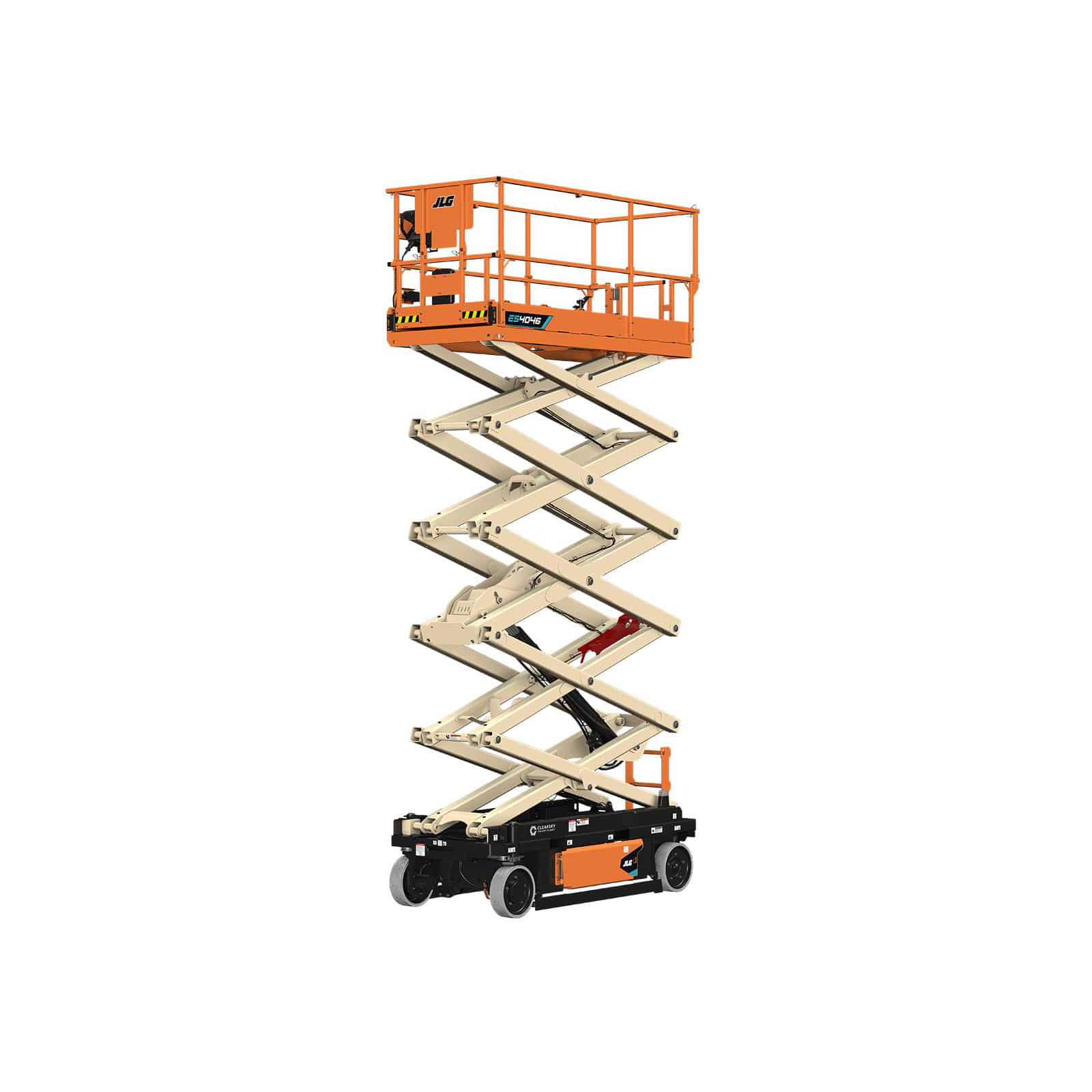

JLG ES4046 Specs
Quick-reference specifications for the JLG ES4046 scissor lift, taken from the manufacturer’s spec sheet.
- Capacity on Platform Extension
- 250 lb113 kg
- Platform Height (Lowered)
- 54.8 in1.4 m
- Weight
- 6,230 lb2826 kg
- Gradeability
- 25%
Performance 10 specs
| Capacity on Platform Extension | 250 lb (113 kg) |
|---|---|
| Lift / Lower Time (No Load) | 66/52 Seconds |
| Lift / Lower Time (Rated Load) | 76/42 Seconds |
| Drive Speed (Lowered) | 3 mph / 4.8 kmh |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Gradeability | 25% |
| Max Tilt Rating (Side-to-Side) | 1.50 Degrees |
| Max Tilt Rating (Fore and Aft) | 3.50 Degrees |
| Stowed Drive Speed | 3 mph (4.8 km/h) |
| Drive | 24 V DC |
Dimensions 12 specs
| Maximum Drive Height | Indoor: 39.1 ft / 11.9 m; Outdoor: 28 ft 8.5 in / 8.75 m |
|---|---|
| Machine Width | 46 in (117 cm) |
| Machine Length | 106.6 in (2.7 m) |
| Wheelbase | 80.6 in (2.04 m) |
| Ground Clearance | 4.9 in (12.45 cm) |
| Platform Height (Lowered) | 54.8 in (1.4 m) |
| Platform Railing Height | 44.6 in (1.13 m) |
| Machine Height (Rails Raised) | 99.5 in (2.53 m) |
| Machine Height (Rails Lowered) | 78.2 in (1.99 m) |
| Platform Width | 37.6 in (95.5 cm) |
| Platform Length | 97.9 in (2.47 m) |
| Platform Extension | 35.9 in (91.2 cm) |
Weight 2 specs
| Weight | 6,230 lb (2826 kg) |
|---|---|
| Max. Ground Bearing Pressure | 152 psi (10.7 kg/cm2) |
Power / Engine 2 specs
| Batteries | 4 x 6 V 255 AH |
|---|---|
| Charger | 27 Amp |
