Telehandler · JLG

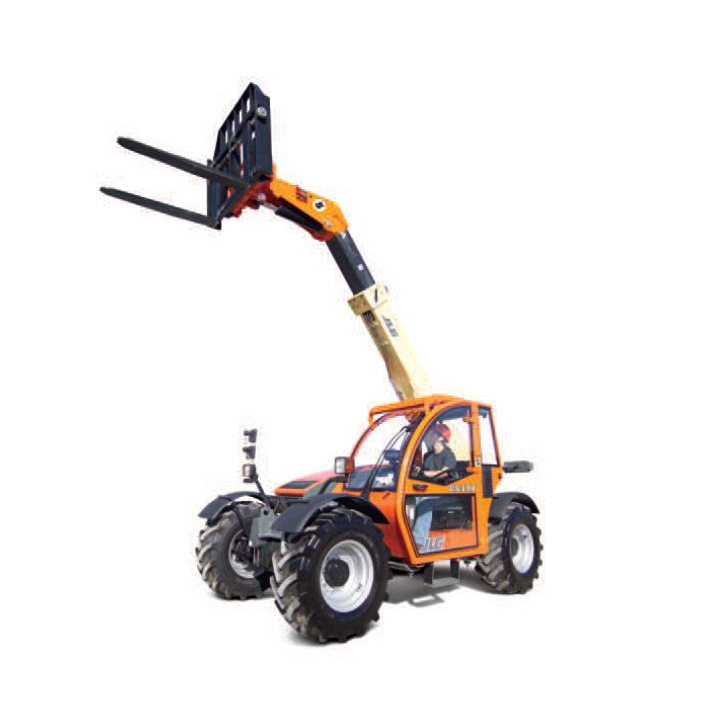

JLG G5-19A Specs
Quick-reference specifications for the JLG G5-19A telehandler, taken from the manufacturer’s spec sheet.
- Capacity at Maximum Lift Height
- 4,850 lb2,200 kg
- Maximum Lift Height
- 19 ft5.79 m
- Capacity at Maximum Forward Reach
- 2,205 lb1,000 kg
- Gradeability
- 45%
Performance 12 specs
| Capacity at Maximum Lift Height | 4,850 lb (2,200 kg) |
|---|---|
| Capacity at Maximum Forward Reach | 2,205 lb (1,000 kg) |
| Reach at Maximum Height | 2 ft 7.5 in (80 cm) |
| Maximum Forward Reach | 10 ft 4 in (3.15 m) |
| Towing Capacity | 11,023 lb (5,000 kg) |
| First Gear | 4 mph (6.4 kmph) |
| Second Gear | 20 mph (32 kmph) |
| Gradeability | 45% |
| Cab work lights—2 front, 2 rear | 1.3 cu yd (1.0 m3) |
| Work lights on boom | 94 in (2.39 m) wide |
| Turning Radius Over Tires | 12 ft 10.5 in |
| Turning Radius at Fork | 16 ft 9 in |
Dimensions 9 specs
| Maximum Lift Height | 19 ft (5.79 m) |
|---|---|
| Length (less forks) | 150 in (3.81 m) |
| Length at Fork Holder Plate | 173 in |
| Width | 80 in (2.03 m) |
| Width of Cab | 35 in (89 cm) |
| Track Width | 65 in (1.65 m) |
| Height | 86 in (2.18 m) |
| Wheelbase | 106 in (2.69 m) |
| Ground Clearance | 13 in (33 cm) |
Weight 1 spec
| Gross Vehicle Weight | 13,889 lb (6,300 kg) |
|---|
Power / Engine 2 specs
| Make and Model | Deutz 2012 |
|---|---|
| Engine Oil | 2.6 gal (9.8 L) |
Hydraulics / Fluids 4 specs
| Fuel Tank | 24 gal (91 L) |
|---|---|
| Coolant | 4 gal (15 L) |
| Gear Pump | 24.8 gal/min (94 L/min) |
| Hydraulic Reservoir | 17 gal (64 L) |
