Telehandler · JLG

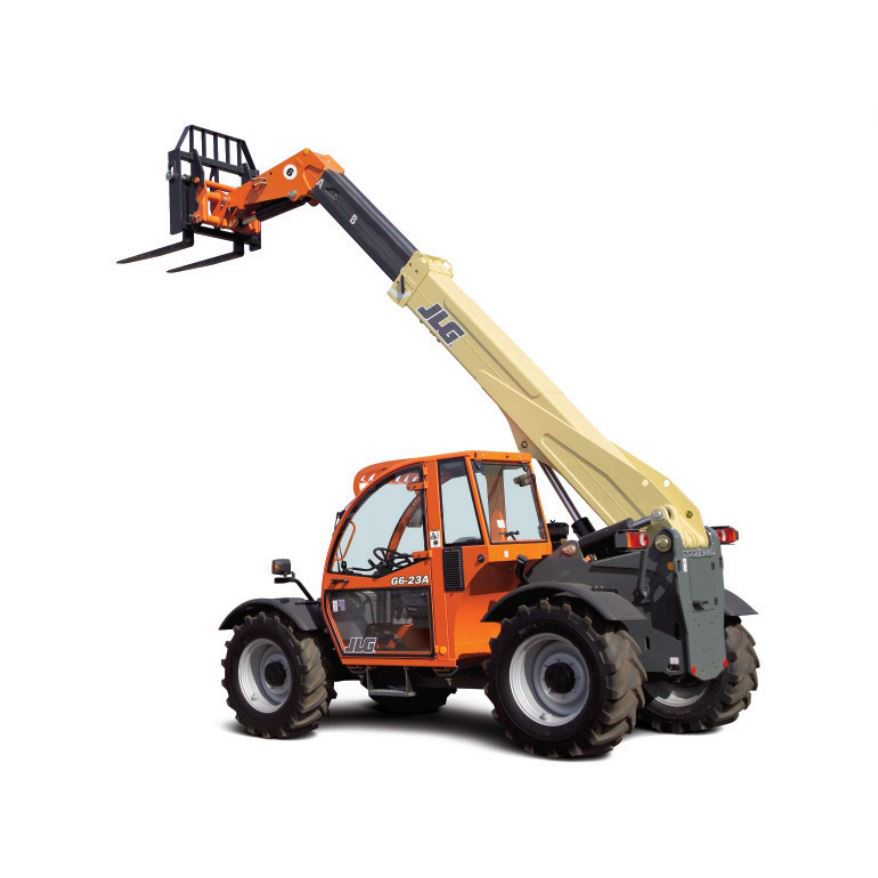

JLG G6-23A Specs
Quick-reference specifications for the JLG G6-23A telehandler, taken from the manufacturer’s spec sheet.
- Capacity at Maximum Lift Height
- 5,700 lb2,586 kg
- Maximum Lift Height
- 22 ft 7 in6.88 m
- Capacity at Maximum Forward Reach
- 2,975 lb1,350 kg
- Gradeability
- 45%
Performance 13 specs
| Capacity at Maximum Lift Height | 5,700 lb (2,586 kg) |
|---|---|
| Capacity at Maximum Forward Reach | 2,975 lb (1,350 kg) |
| Reach at Maximum Height | 3 ft (91 cm) |
| Maximum Forward Reach | 12 ft 9 in (3.89 m) |
| Towing Capacity | 11,025 lb (5,001 kg) |
| First Gear | 4 mph (6.5 kmph) |
| Second Gear | 19 mph (31 kmph) |
| Gradeability | 45% |
| Cab work lights—2 front, 2 rear | 4 in-1 Bucket |
| Work lights on boom | 1.3 cu yd (1.0 m3) |
| Rotating beacon | 94 in (2.39 m) wide |
| Turning Radius Over Tires | 14 ft 5 in |
| Turning Radius at Fork | 17 ft 8 in |
Dimensions 9 specs
| Maximum Lift Height | 22 ft 7 in (6.88 m) |
|---|---|
| Length (less forks) | 163 in (4.14 m) |
| Length at Fork Holder Plate | 195 in |
| Width | 90.5 in (2.30 m) |
| Width of Cab | 35 in (89 cm) |
| Track Width | 74.5 in (1.89 m) |
| Height | 92.5 in (2.35 m) |
| Wheelbase | 114 in (2.9 m) |
| Ground Clearance | 8 in (20 cm) |
Weight 1 spec
| Gross Vehicle Weight | 15,900 lb (7,210 kg) |
|---|
Power / Engine 2 specs
| Make and Model | Deutz 2012 |
|---|---|
| Engine Oil | 2.6 gal (9.8 L) |
Hydraulics / Fluids 4 specs
| Fuel Tank | 27 gal (102 L) |
|---|---|
| Coolant | 4 gal (15 L) |
| Gear Pump | 24.8 gal/min (94 L/min) |
| Hydraulic Reservoir | 23 gal (87 L) |
